Data Acquisition System Omniace RA3100

Brand	AND
Sub Categories	Lab tools
Application	Data Acquisition

Category: Test and Measurements

GENERAL

・All data recorded in Omniace

・High-speed, long-term recording of phenomena on large-capacity storage media

Omniace RA3100 is a data acquisition system for research, development, and field maintenance, which enables accurate and long-term measurement of high-speed switching waveforms, even in severely noisy environments, in electric automobiles, electronic appliances, railroad cars, and solar power generation systems utilizing inverter control technology that has become widespread in recent years.

DESCRIPTION

Features

■ Multi-channel Input

Max 36ch (analog input), Max 144ch (logic input)
“The 4ch Voltage Module” allows 4-channel input with a single unit.
9 modules can be installed in the main unit, allowing 36-channel recording.
“The 16-channel Logic Module” allows 16-channel logic signal input with a single unit.
9 modules can be installed in the main unit, allowing 144-channel logic signal recording.

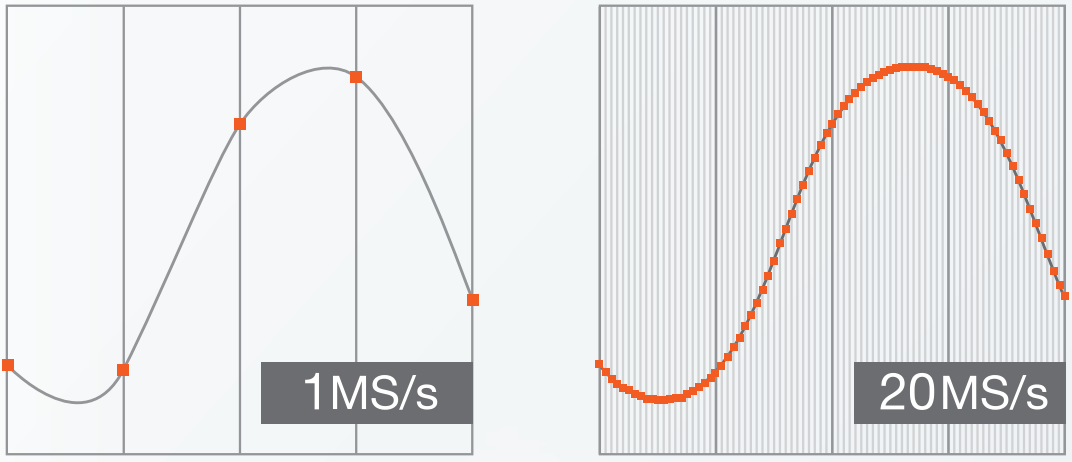

■ High-speed Sampling and High-definition Measurement at 20M S/s with 18ch for 5 seconds

“The 2ch High-Speed Voltage Module” is an input module for high-speed sampling at the highest level of the series. Includes the ability for a sampling rate of 20MS/s, input voltage up to ±500 V, and 14 bit resolution. 9 modules can be installed in the main unit, allowing for 18-channel high-speed memory recording.

	2ch	8ch	18ch
20MS/s	50 sec	10 sec	5 sec
10MS/s	1 min 40 sec	25 sec	10 sec
5MS/s	3 min 20 sec	50 sec	20 sec
2MS/s	8 min 20 sec	2 min 5 sec	50 sec
1MS/s	16 min 40 sec	4 min 10 sec	1 min 40 sec
500kS/s	33 min 20 sec	8 min 20 sec	3 min 20 sec
〜	〜	〜	〜
10kS/s	27 hrs 46 min 40 sec	5 hrs 33 min 20 sec	2 hrs 46 min 40 sec
5kS/s	55 hrs 33 min 20 sec	11 hrs 6 min 40 sec	5 hrs 33 min 20 sec
2kS/s	138 hrs 53 min 20 sec	27 hrs 46 min 40 sec	13 hrs 53 min 20 sec
1kS/s	277 hrs 46 min 40 sec	55 hrs 33 min 20 sec	27 hrs 46 min 40 sec

■ Long-term Recording

Various recording speeds, multiple channels, and a high-capacity storage medium to support a large amount of data are included as standard.
Recording desired signal accurately without missing detailed changes.

Memory capacity of 4GB (when 18 channels are used, 20MS/s, 5 seconds)
SSD capacity of 256GB (when 36 channels are used, 1MS/s, approximately 59 minutes)

■ High-speed and High-definition printing

High-resolution waveform printing at high speeds (100mm/s) is possible.
Even if the chart paper runs out, recorded data is backed up to the SSD and can be printed out later.

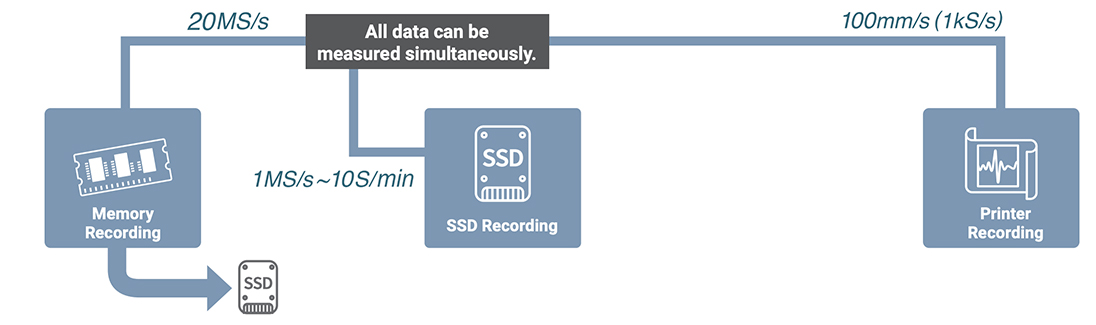

■ Various Recording Method

“Memory”, “SSD”, and “Printer” are provided as data recording destinations.
Data measurement can be performed at all three destinations at the same time.
This can be selected freely depending on the measurement purposes.

Memory Recording

Memory mode records data in the internal memory (4GB) at high speed (max: 20MS/s).
In addition, measurement can be performed under a variety of conditions using a variety of trigger functions.

After the input data is recorded in the memory, it is automatically saved to SSD.
Sampling speed: 20MS/s to 10S/min (depending on the input module)
Memory capacity: 4GB (2G point/ch)
Memory divisions: 1 to 200 divisions
Recording length: 2000 to 2G points/ch (1-2-5 step)
Total Memory Capacity
Memory Block Segment

Recordable Time on Memory

Sample speed	2ch	8ch	18ch	36ch
20MS/s	50 sec	10 sec	5 sec	–
10MS/s	1 min 40 sec	25 sec	10 sec	–
5MS/s	3 min 20 sec	50 sec	20 sec	–
2MS/s	8 min 20 sec	2 min 5 sec	50 sec	–
1MS/s	16 min 40 sec	4 min 10 sec	1 min 40 sec	50 sec
500kS/s	33 min 20 sec	8 min 20 sec	3 min 20 sec	1 min 40 sec
〜	〜	〜	〜	〜
10kS/s	27 hrs 46 min 40 sec	5 hrs 33 min 20 sec	2 hrs 46 min 40 sec	1 hrs 23 min 20 sec
5kS/s	55 hrs 33 min 20 sec	11 hrs 6 min 40 sec	5 hrs 33 min 20 sec	2 hrs 46 min 40 sec
2kS/s	138 hrs 53 min 20 sec	27 hrs 46 min 40 sec	13 hrs 53 min 20 sec	6 hrs 56 min 40 sec
1kS/s	277 hrs 46 min 40 sec	55 hrs 33 min 20 sec	27 hrs 46 min 40 sec	13 hrs 53 min 20 sec

SSD Recording

Long-term of data can be recorded to the internal SSD.
High-speed recording of up to 1MS/s is possible when using 36ch.
Since it is stored as digital data, data can be analyzed after recording and data can be managed for a long period of time.

Input data is saved directly to SSD.
Sampling speed: 1MS/s to 10S/min (depending on the input module)
SSD capacity: 256 GB
Maximum recording time: 100 days
Data format: Normal data, Peak data

Recordable Time on SSD

Sample speed	1ch	2ch	4ch	8ch	16ch	18ch	32ch	36ch
1MS/s	35 hrs	17 hrs	8 hrs	4 hrs	2 hrs	1 hr 58 min	1 hr	59 min
500kS/s	70 hrs	35 hrs	16 hrs	8 hrs	4 hrs	3 hrs 56 min	2 hrs	1 hr 46 min
200kS/s	175 hrs	85 hrs	40 hrs	20 hrs	10 hrs	9 hrs 52 min	5 hrs	4 hrs 26 min
100kS/s	350 hrs	175 hrs	80 hrs	40 hrs	20 hrs	19 hrs	10 hrs	8 hrs 53 min
50kS/s	700 hrs	350 hrs	160 hrs	80 hrs	40 hrs	38 hrs	20 hrs	17 hrs 46 min
20kS/s	1750 hrs	850 hrs	400 hrs	200 hrs	100 hrs	95 hrs	50 hrs	44 hrs 56 min
20kS/s	1750 hrs	850 hrs	400 hrs	200 hrs	100 hrs	95 hrs	50 hrs	44 hrs 56 min
10kS/s	2400 hrs	1750 hrs	800 hrs	400 hrs	200 hrs	190 hrs	100 hrs	89 hrs
5kS/s	2400 hrs	2400 hrs	1600 hrs	800 hrs	400 hrs	380 hrs	200 hrs	178 hrs
2kS/s	2400 hrs	2400 hrs	2400 hrs	2000 hrs	1000 hrs	950 hrs	500 hrs	444 hrs
1kS/s	2400 hrs	2400 hrs	2400 hrs	2400 hrs	2000 hrs	1900 hrs	1000 hrs	889 hrs

Window Recording

Endless recording is possible by specifying the ring buffer area (maximum 2G points/ch) as the window recording time. If you do not know when an abnormality will occur, you may miss the abnormal data if you set the recording time and measure. By ringing the recording area, you can always save the latest data.

Selectable for SSD Recording

Omniace is a digital recorder that performs analog to digital conversion on all inputs and records those signals. Due to the relationship between the speed of analog to digital conversion and the frequency component of the input signal, the data may or may not be measured correctly.

Normal Data

Normal data is recorded at each designated recording speed. (■ points)
If the signal changes too fast relative to the recording speed, the data singular point (peak value) may not be recorded. Memory recording can measure this type of data.

Peak Data

Peak data is sampling (■, ■, and □ points) between the designated recording speed at the fastest AD-conversion rate, and records two data points, the maximum value (■ points) and the minimum value (■ points). The amount of data can be compressed without losing the data singular point (peak value).
Printer recording records data of this method on the chart paper.

Printer Recording

Input data is printed directly on the chart paper at high speed (100mm/s). Waveforms are displayed as if recorded with a pen on the display, and the input module and chart speed can be set. 48ch signals can be printed on the chart paper.
In addition, as the data printed on the chart paper is also stored digitally on the SSD, the data can be printed out later, even if the chart paper run out,
Recording Specifications
Chart speed: 1kS/s (100mm/s) to 10S/s (1mm/min)
Recording resolution: 10 to 40 dots/mm (time axis) 8 dots/mm (amplitude axis)

■ Input Modules

Up to 9 modules can be installed in the main unit.
Various modules for high-speed voltage, high-accuracy voltate, logic inut, temperature measurement, and remote control are available.

Module Name and Model	Channels	Channels	Sampling Rate	Input	Specifications
2ch Voltage Module	RA30-101	2ch	1MS/s	±500V	Measure high-speed voltage measurement with anti-aliasing filters
4ch Voltage Module	RA30-102	4ch	1MS/s	±200V	Multi-channel voltage measurement
2ch High-speed Voltage Module	RA30-103	2ch	20MS/s	±500V	High-speed voltage measurement
16ch Logic Module	RA30-105	16ch	1MS/s	Contact	Contact signal measurement
2ch Logic Module	RA30-106	2ch	1kS/s	Thermocouple : K, E, J, T, N, R, S, B, C RTD: Pt100, Pt1000	Measurement of temperature with a thermocouple and RTD

■ Excellent Visibility and Operability

The LCD display with touch panel allows zoom in and out, and scrolling through the waveform simply,
allowing a dynamic waveform drawing and operability like a smartphone. Pinch-in Pinch-out Swipe

■ Back scrolling

Press the [PAUSE] button during recording to playback recorded data while recording.
Recording start Recording during monitoring Playback monitoring Continuous recording

■ Various Monitor Displays

Input signal and recorded data can be displayed as Y-T waveform display, X-Y display, and FFT.

Y-T Waveform Display

Display the measurement channels split into three sheets. (Max. 48ch can be registered per sheet)
Monitors up to 48 channels of signals on a graph with 20 divisions in vertical and horizontal.

Set the signal display width and display position.

Signals can be drawn at any position on the graph at any width.You can easily draw a 100V signal in the width of 1div.

Display Width
Display the signals of each channel at any width.
Set the width of the channel to be displayed as % out of the 100% width of the display graph.

Display Position
Set the position of the channel to be displayed as % out of the 100% width of the display graph.

Scale Setting
Set the upper limit/lower limit value of display for the display width of each channel as an input value or a physical conversion value.

X-Y Display

An X-Y graph can be drawn by specifying 4 channels for the X-axis and 4 channels for the Y-axis. The graph can be displayed a large single graph, or devided four graphs for the each X and Y axis channels. The pen can also be moved up or down, and the grid can be turned on or off.

FFT Analysis

FFT analysis is performed for any two signals. The top 10 highest values can be read from the analysis results, and the value of any analysis result can be read using the cursor. (FFT analysis can be performed on normal data recorded in SSD.)

Measurement Mode Selection
Nine measurement patterns are prepared as measurement modes.
“Measurement Mode” can be selected from Measurement starts by manual operation, Measurement starts from a trigger signal or Repeating measurement, etc. When “Measurement Mode” is selected, the necessary set-up menu is displayed and can be easily set.
