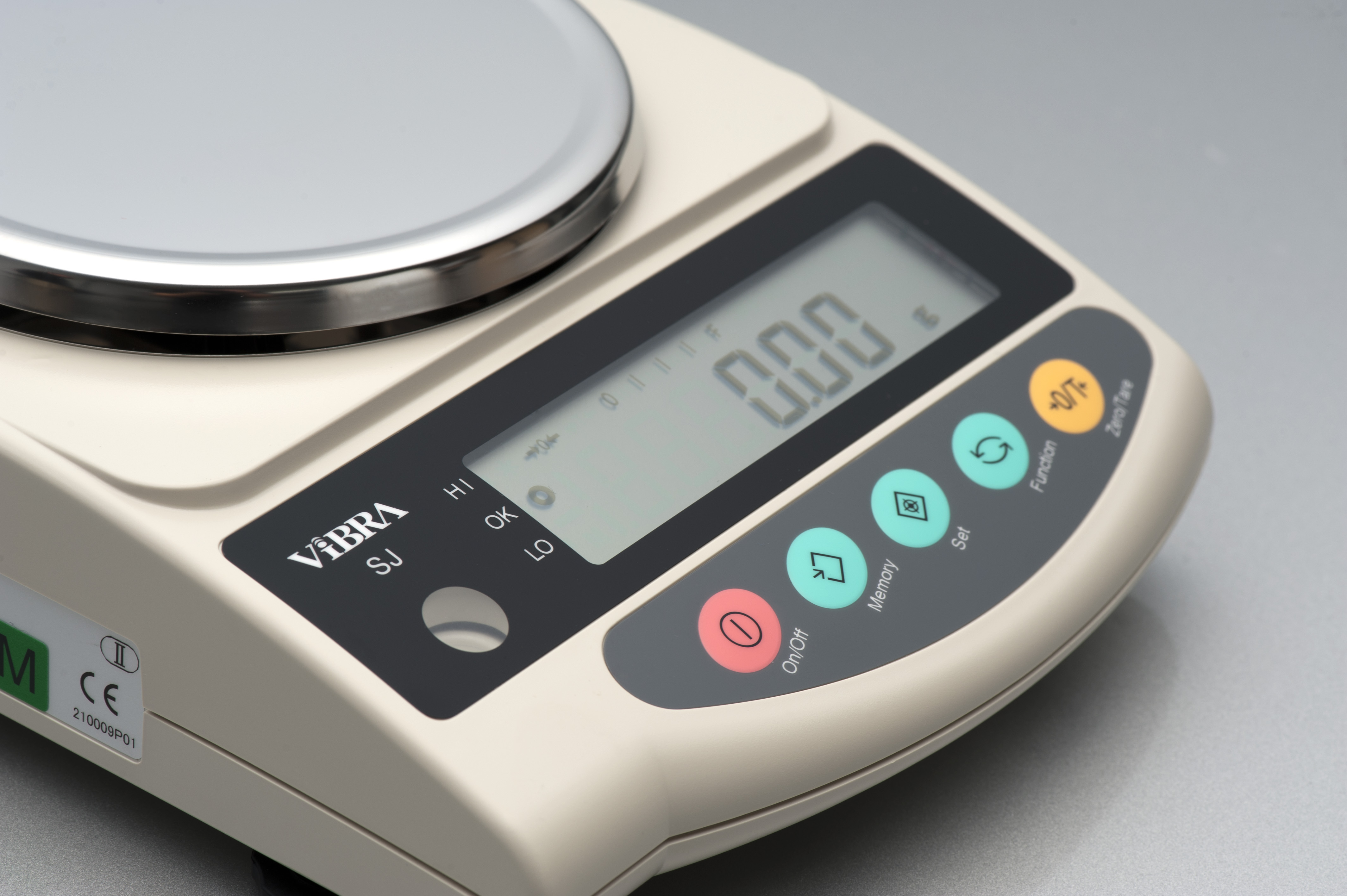

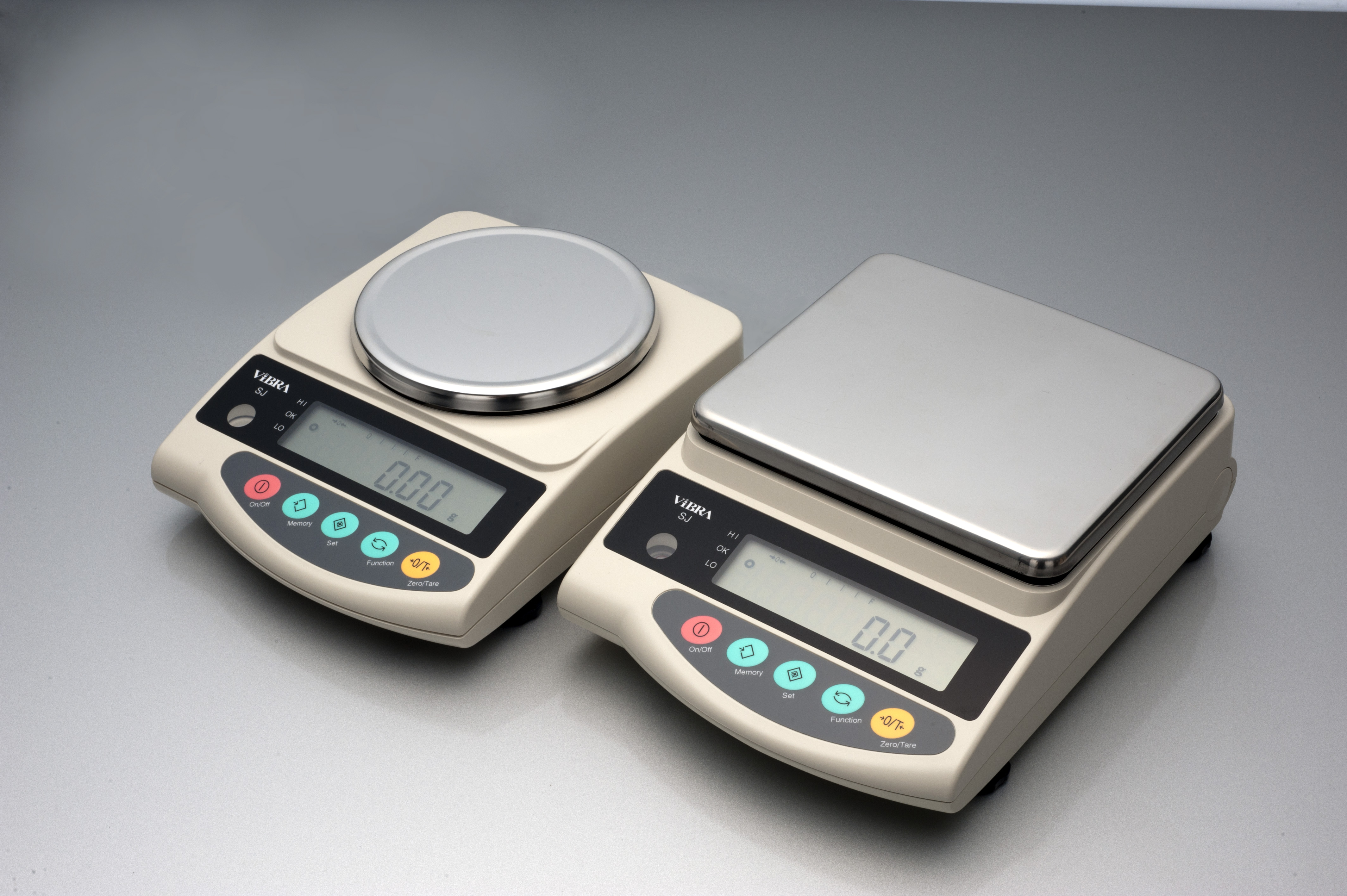

SJ series

Brand	ViBRA
Sub Categories	Mass, Force & Hardness Test and Measurements
Application	Precision Balance

Category: Test and Measurements

Common Specification

Tare	Zero to Full weighing range
Span adjustment	Manual operation Span Adjustment with external calibration weight
Over error	“o-Err” showed when Full weight range + 9 more digits over
Temperature and humidity range	5 ～ 35℃ (E type) & 10~30℃ (CE type), Up to 80％ rh(without the dew condensation)
Power source	AC adapter Input 100-240VAC / Output 12VDC
Output	Nil

Features

Highly usable basic applications
Short stabilization time and stable indication
Portability

Highly usable basic applications

SJ series offers basic applications in user-friendly operations to make weighing works easier; percentage weighing, parts counting, check-weighing, etc..

Short stabilization time & stable indication

SJ series offers short stabilization time and stable indication. It promises stress-free weighing routine works.

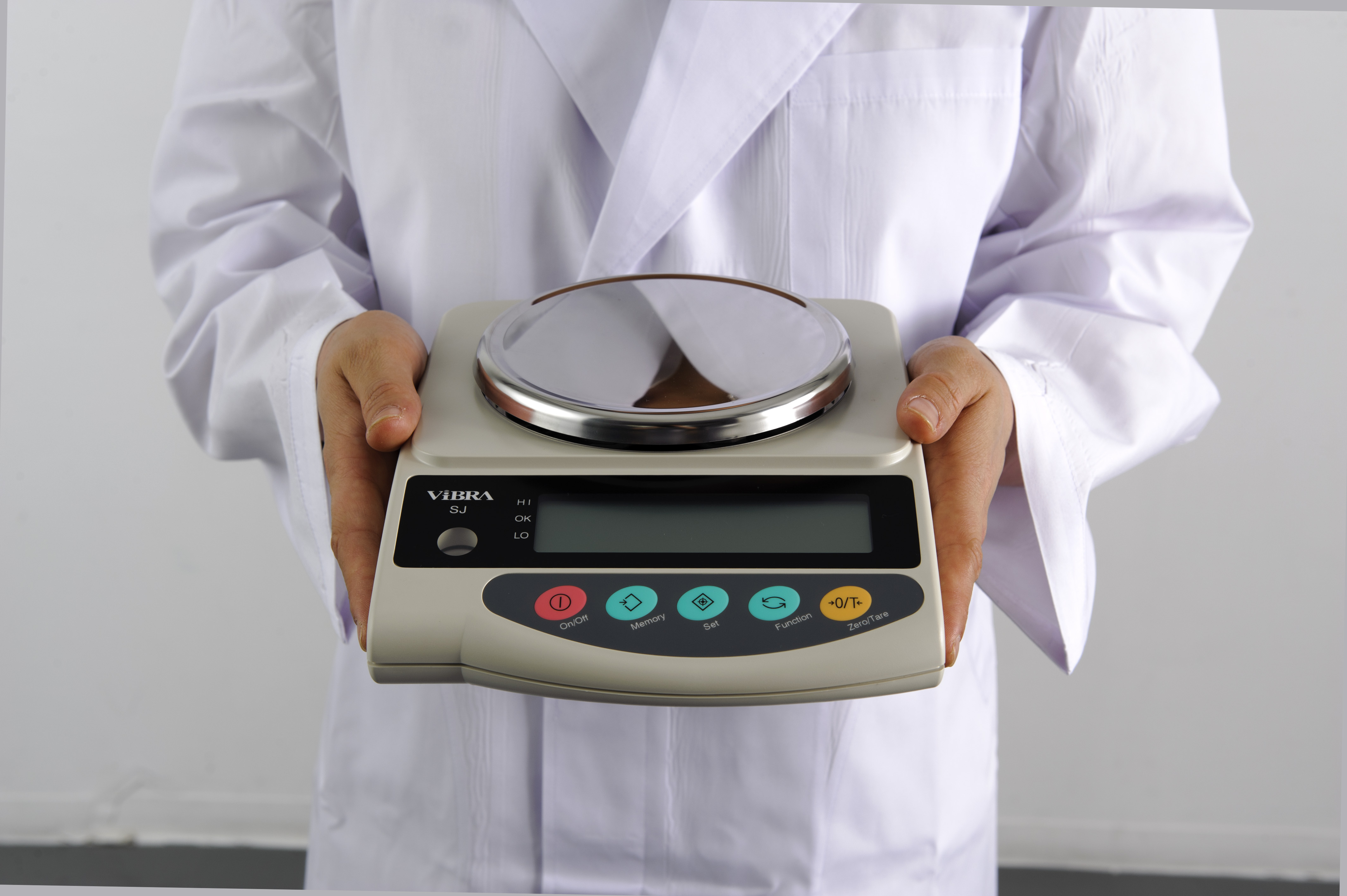

Portability

SJ series can be operated with rechargeable battery option. And all features are well combined in quite compact body. It realizes high-portability of precision balance.

Specification

Model name	SJ-220E SJ-220CEN	SJ-420E SJ-420CEN	SJ-620E SJ-620CEN	SJ-1200E SJ-1200CEN
Capacity	220g	420g	620g	1200g
Readability (d)	0.01g	0.01g	0.01g	0.1g
Verification intervals (e)	0.01g	0.01g	0.1g	0.1g
Accuracy class	Ⅱ	Ⅱ	Ⅱ	Ⅱ
Repeatability	0.01g	0.01g	0.1g	0.1g
Linearity	±0.01g	±0.01g	±0.01g	±0.1g
Stabilization time	2.5 sec.	2.0 sec.	2.0 sec.	2.0 sec.
Pan size	140mm dia			170x140mm
Dimentions(WDH)	182×235×75mm

Model name	SJ-2200E SJ-2200CEN	SJ-4200E SJ-4200CEN	SJ-6200E SJ-6200CEN	SJ-12KE SJ-12KCEN
Capacity	2200g	4200g	6200g	12000g
Readability (d)	0.1g	0.1g	0.1g	1g
Verification intervals (e)	0.1g	0.1g	1g	1g
Accuracy class	Ⅱ	Ⅱ	Ⅱ	Ⅱ
Repeatability	0.1g	0.1g	1g	1g
Linearity	±0.1g	±0.1g	±0.1g	±1g
Stabilization time	2.5 sec.	2.5 sec.	3.0 sec.	2.5 sec.
Pan size	180×160mm
Dimentions(WDH)	192×265×87mm

Functions

Back-light LCD display
Counting
Percent
Carat
Momme
Stand-by
Comparator (Limit)
Bar-Graph indication
Manual oparation calibration delete

Option

Model No.	Option Name
AJBT(M)	Rechargeable battery (2200g-12kg)
AJUH(S)	Under weighing hook (220g-1200g)
AJUH(M)	Under weighing hook (2200g-12kg)
SJBT(S)	Rechargeable battery (200g-1200g)
SJR(S)	RS232C output (220g-1200g)
SJR(M)	RS232C output (2200g-12kg)
SJLM(S)	Relay contact (220g-1200g)
SJLM(M)	Relay contact (2200g-12kg)

Peripheral equipment

Model No.	Peripheral Name
CBM-910Ⅱ	Standard Printer
CSP-160Ⅱ	Statistics Printer
RTS	Data-collecting Software
SDI	Satellite Second Display
