Common Specification

Tare	Zero to Full weighing range
Span adjustment	Manual operation Span Adjustment with external calibration weight
Ingress Protection Rating	IP65
Over error	“o-Err” showed when Full weight range + 9 more digits over
Temperature and humidity range	0 ～ 40℃、Up to 80％ rh(without the dew condensation)
Power source	AC adapter Input 100-240VAC / Output 5.95VDC
Output	RS232C(Dsub 9P)

Features

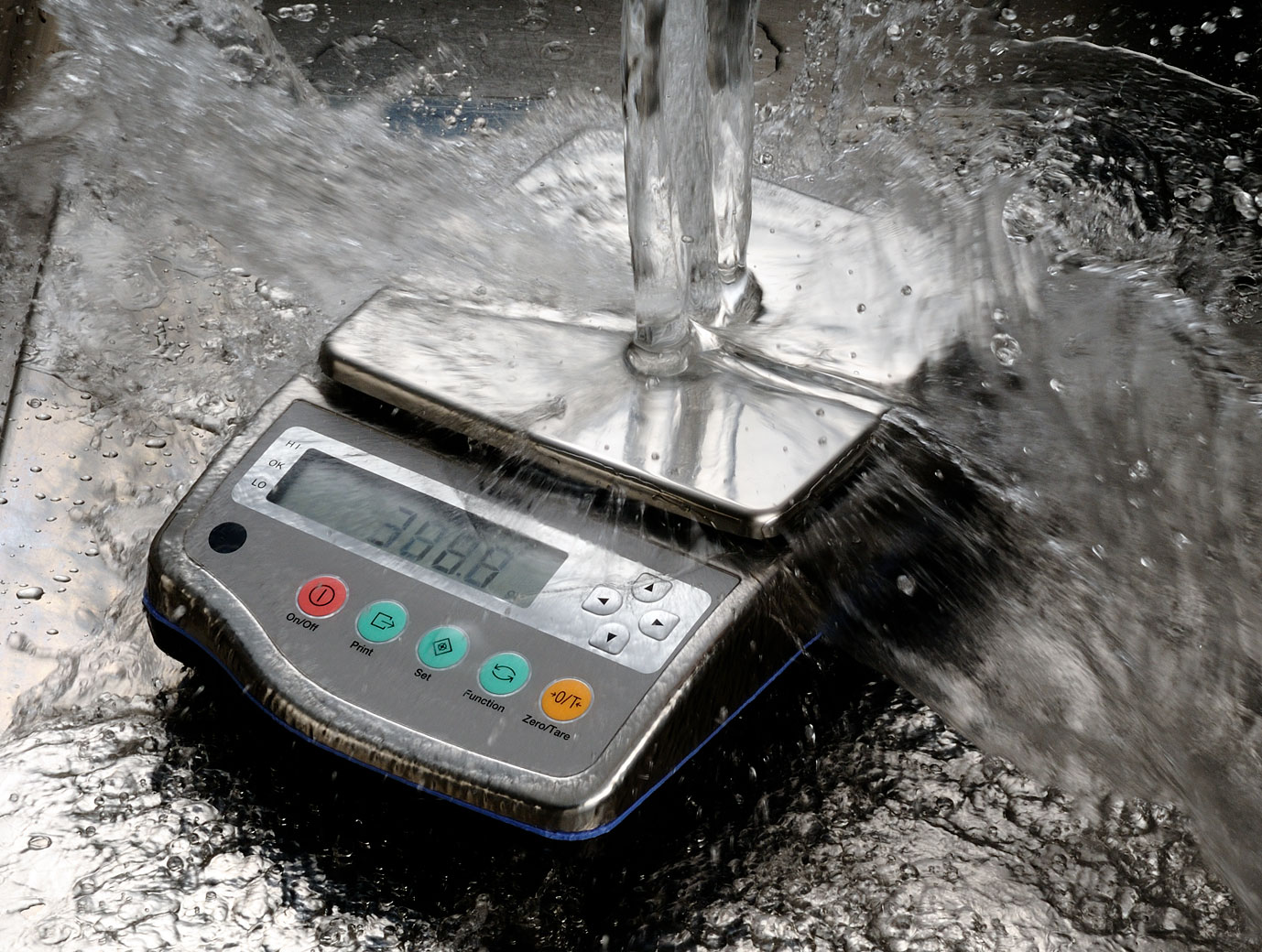

IP65, water and dust proof
Reliable measurement even in tough condition

Heavy duty precision balance with water and dust proof feature

CJ series promises the excellent performance in any environment, dust atmosphere, mist, oil splashes, dark condition… etc. The stainless-steel upper case is resistant to chemical products, and easy to clean. This is the best solution to your every needs.

Minimize the response time and keep the indication stable

Unique tuning-fork sensing system achieves the high speed response and stable indication necessary for reliable measurement. The fast response ensures the comfortable and efficient operation.

Low energy consuming, high portability

Low energy-consuming design allows CJ series to operate for 200 hours with dry-cell battery (when back-lit is OFF). It is very much suitable for mobile use (32-hour operation with dry-cell battery in case of back-lit ON)

Various measurement modes & functions for industrial weighing

Parts counting, percentage, comparator, density measurement… CJ is the answer to various requirements in the industrial weighing. You can easily set the appropriate mode with arrow key.

Animal weighing

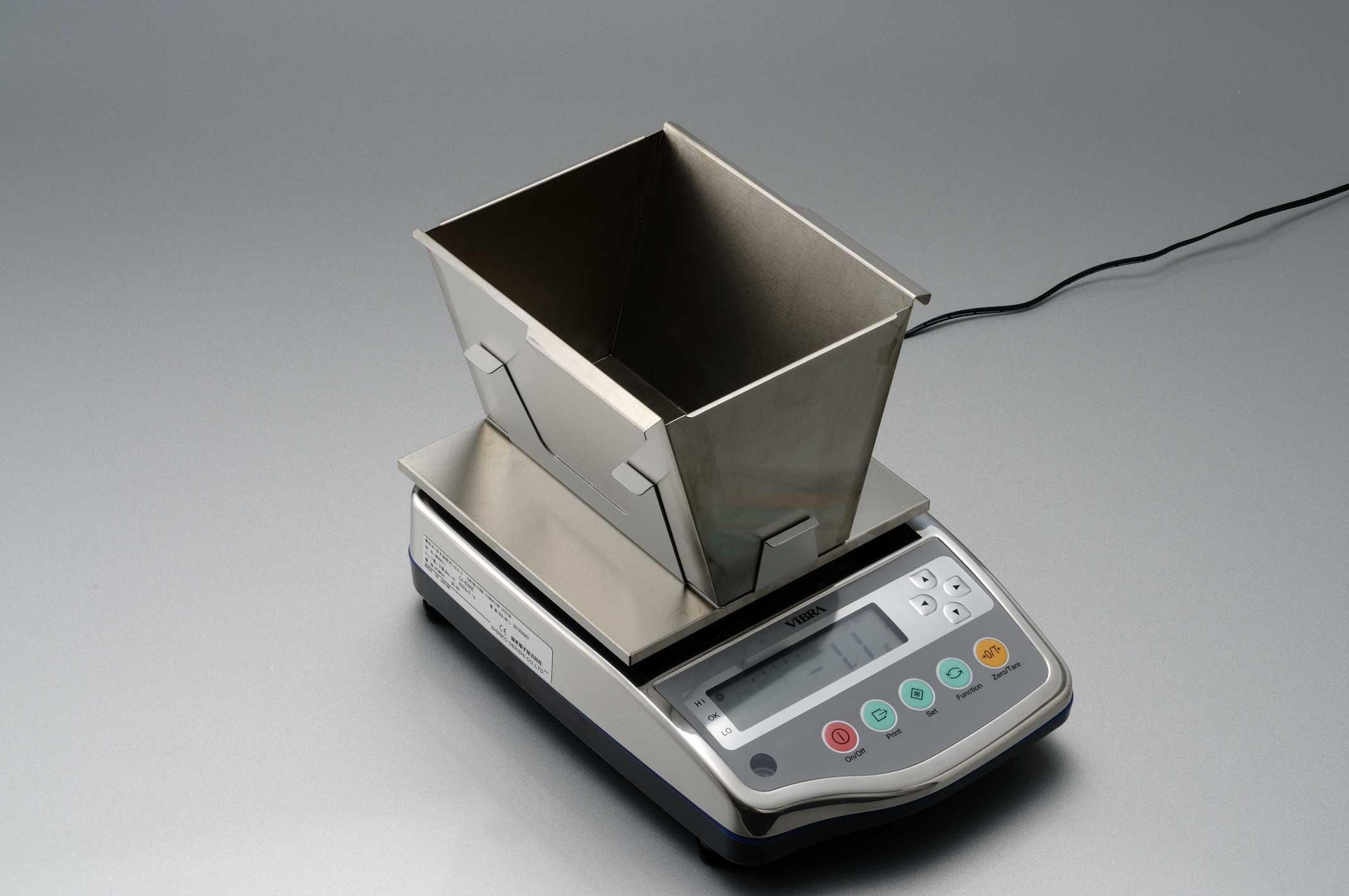

CJ series has animal weighing mode which can accurately weigh the moving animal. The special bucket for animal weighing is available as option.

Connecting to outside devices

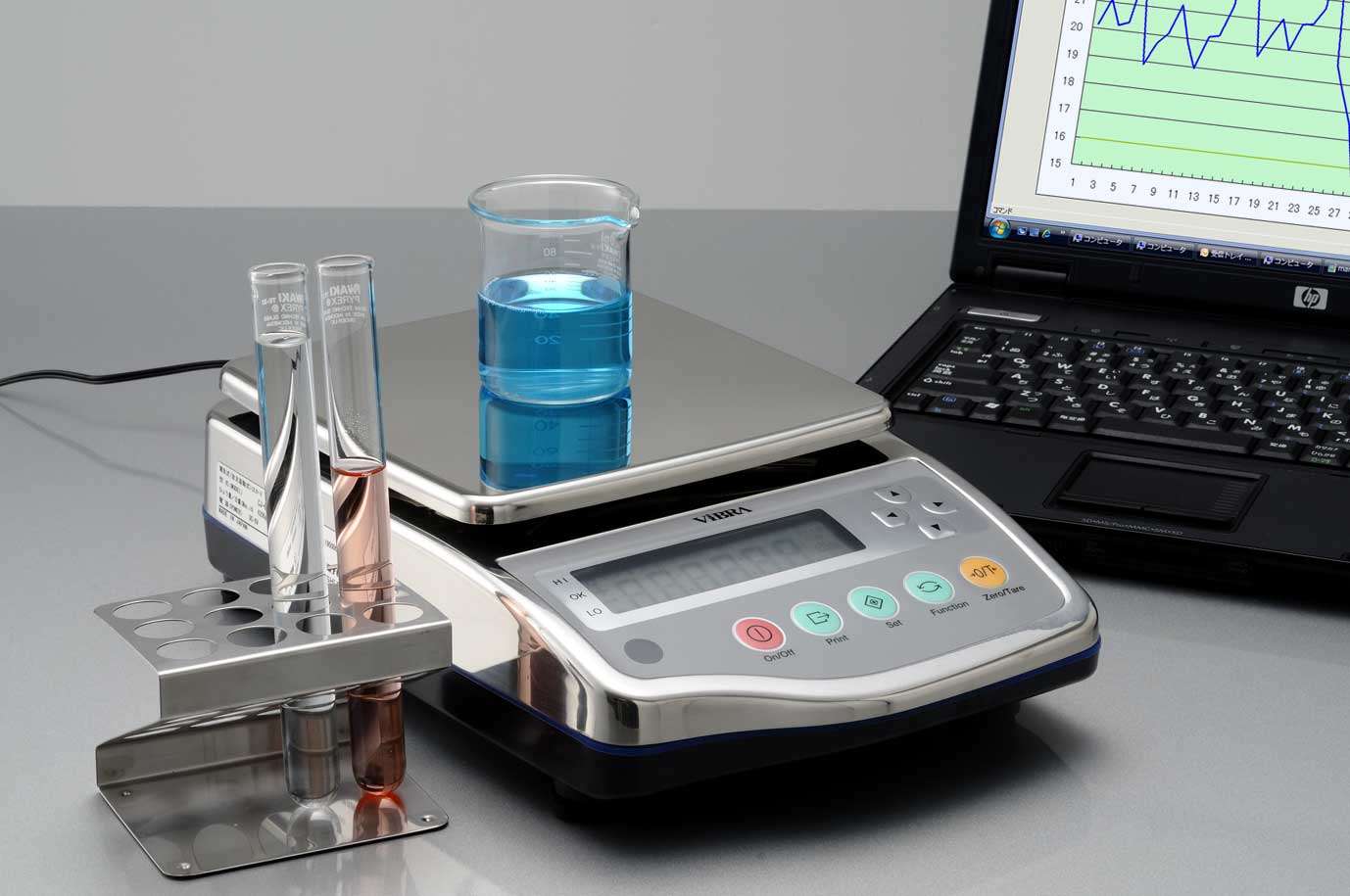

RS232C output is equipped as standard, easy connection to outside devices like PC. Plentiful outputs besides RS232C are available as option (special WP cable option is necessary when CJ should be used with RS232C output as water-proof).

Specification

Model name	CJ-820E CJ-820CE
Capacity	820g
Readability (d)	0.01g
Repeatability	0.01g
Linearity	±0.01g
Pan size	140mm dia
Dimentions(WDH)	206×312×89mm

Model name	CJ-3200E CJ-3200CE	CJ-8200E CJ-8200CE	CJ-15KE CJ-15KCE
Capacity	3200g	8200g	15000g
Readability (d)	0.1g	0.1g	1g
Repeatability	0.1g	0.1g	1g
Linearity	±0.1g	±0.1g	±1g
Pan size	190×190mm
Dimentions(WDH)	206×312×89mm

Functions

Back-light LCD display
Counting
Percent
Carat
Momme
Coefficient
Specific gravity
Aniumal weighing
Switching function of Min. readbilitry
Direction key
Comparator (Limit)
Accumulative adding
Bar-Graph indication
Manual oparation calibration delete
RS232C output
ISO/GLP/GMP compliant print
Warning by Buzzer
RTS software download
Under weight
IP65 standard compliant dust-proof & water-proof structure

Option

Model No.	Option Name
CJ-R4	RS422A output
CJ-LM	Relay contact
CJ-LS	Full pack (BZ, RS, LM)
CJ-BT	Dry -cell battery pack
CJ-WR	Water-proof cable for RS232C output
AJUH(S)	Under-weighing hook
CJ-AP(S)	Bucket for animal weighing (820g)
CJ-AP(M)	Bucket for animal weighing (3200g)
CJ-AP(L)	Bucket for animial weighing (8200g, 15kg)
CJ-BZ	Loud buzzer option

Peripheral equipment

Model No.	Peripheral Name
CBM-910Ⅱ	Standard Printer
CSP-160Ⅱ	Statistics Printer

Download

Manual of CJ-E

EU Declaration of conformity

Physical dimension of CJ-820

Physical dimension of CJ-3200 – CJ-15K

Catalog

Brand	ViBRA
Sub Categories	Mass, Force & Hardness Test and Measurements
Application	Precision Balance

CJ series
