The Apiste GME Series of high-performance mist collectors feature an Impingement separation disc that achieves filter-less operation and drastically reduced maintenance needs.What’s more, the GME Series has an impressive collection rate over 99.4%.The result is outstanding mist collection performance with less maintenance effort and for a longer period of time.
Specifications
| Max. Airflow | 5.3/6.3 |
|---|---|
| Max. external static pressure(kPa) | 1.2/1.7 |
| Collecting efficiency(%) *1 | 99.4 |
| Operating environment temperature and humidity | 0～40℃, RH90% or less (Indoor specifi cation) |
| Absorption gas temperature(℃) | 0～50 |
| Target to be collected *2 | Water-immiscible oil mist (Ignition point: Higher than 70 °C)
Simultaneously available for water-immiscible oil mist (However, some types of generated oil mist are not usable.) |
| Max. inlet density(mg/m3) | 50 or less |
| External dimensions(mm) | H593×W456×D529 |
| Suction opening | Side suction Φ98mm |
| Weight(kg) | 37 |
| Coating color | Munsell N7.3 / Munsell 5PB/2 (Fan motor casing) |
| Rated voltage(V) *3 | Three-phase AC200±10％ 50/60Hz |
| Max. Consumption current(A) | 1.4/1.7 |
| Max. Power consumption(W) | 330/500 |
| Regulatory Compliance | Low voltage directive（LVD）/EN60204-1:2006/A1:2009
EMC directive/EN61000-6-2:2005、EN61000-6-4:2007 |
| Installed motor output | 0.4kW 2P (totally-enclosed fan-cooled type) |
| Installed motor IE code | IE2 |
| Fan material | A5052 (Aluminum) |
| Disk material *4 | SUS304 (Stainless) |
| Drain | PF1Inch socket |
| Noise(dB[A]) | Approx. 67/71 |
*1 Mass ratio by paper filter.
*2 Do not let the product absorb gel oil mist or oil mist including many chips(cast metal chips generated by cutting or grinding). Such use may shorten the maintenance cycle. It is recommended to attach a pre-filter in a dusty place.
*3 Supply power from a machine tool or a circuit with protector in a power facility.
*4 The shaft connection flange in the center of the disc is not made of SUS.

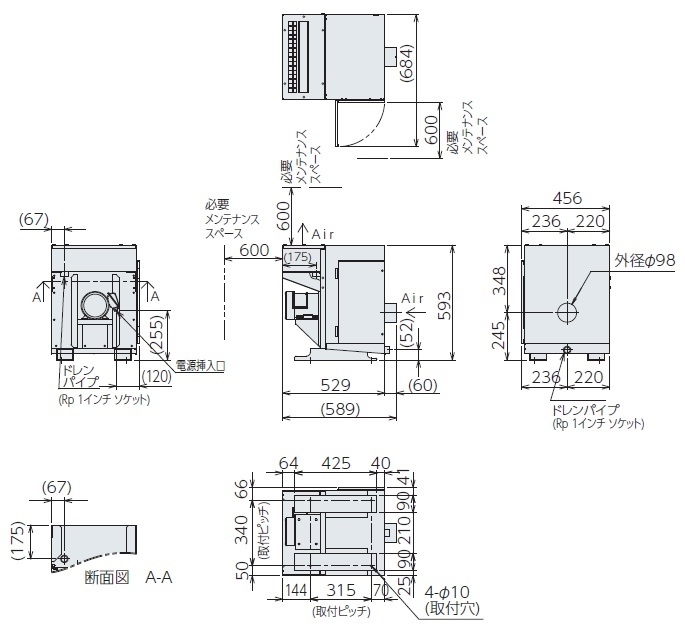

External dimensions
Equipment synchronizing specifications
