Control panel cooling unit – ENC-NW2900L

Name: Control panel cooling unit – ENC-NW2900L
Brand: Apiste
Rating: 4.9 (50 reviews)

Thương hiệu : Apiste

Liên hệ báo giá Hotline/ Zalo: 0911.559.559 Hotline/ Zalo: 0911.559.559

Cam kết và Chính sách của TECHNO

Cam kết 100% Hàng chính hãng
Chất lượng cao, đáp ứng đa dạng nhu cầu
Tư vấn kỹ thuật toàn diện và chuyên sâu
Chính sách bảo hành và hỗ trợ nhanh chóng

Thông số kỹ thuật

Mô tả sản phẩm

Thông tin NSX

Catalogue

Nội dung bài viết

Specifications

(50／60Hz)

Mounting type	Side-mounting
Cooling capacity(W)	2600/2900
Setting Temperature Range(℃)	25～45
Use Area Temperature(℃)	20～55
Use Area Humidity(%RH)	10～80 (No condensation)
External dimensions(mm)	H1000×W400×D230
Weight(kg)	45
Coating Color	Munsell 5Y 7/1 Equivalent color of light beige
Rated Voltage(V)	Three-phase AC200
Consumption Current: Rated(A)	4.0/3.5
Consumption Current: MAX(A)	4.5/4.3
Starting Current(A)	31/30
Consumption wattage: Rated(W)	760/930
Consumption wattage: MAX(W)	1040/1230
Cooling water / Temperature range (℃)	10～40
Cooling water / Flow rate (ℓ/min)	8 or more
Cooling water / Pressure (Mpa)	0.2～0.5
Noise Resistance	LEVEL4 by Fast Transient / Burst Immunity Test
Vibration Resistance	5Hz frequency 20mm total amplitude
Dust prevention / dust proof protection class	Equivalent to IP54 (internal circulation route)
Refrigerant / Fill ration(g)	R134a 220g
Noise (dB (A))	Approx. 63/65
External Output	Alarm output (No-voltage/normal open: resistive load 250V 2A)
Display	Internal temperature/Error display LED/RUN LED

Note）
Cooling capacity : Rated capacity value when external temperature is 35°C, internal temperature is 35°C – 40％, Water temperature 25 ℃, water supply 8 ℓ / min. (measurement conditions:JIS-B-8615 air enthalpy method)）
MAX value: use area temperature at the maximum use area temperature allowed, use area humidity of 40%RH.
Use the product keeping the use power supply and voltage; within ±10% of rated power supply and rated voltage.
Reading an instruction manual well certainly before use and please use it right.

Accessories list

Drain hose	3m
Hose band	1
Spacer	6
Instruction manual	1

Replacement parts list

Condenser side Fan	Circulating fan for NW2900L
Control PCB	Substrate for NW2900L

Note: Check with our sales representative as the delivery lead time varies depending on the inventory status.
*Note that the model, specifications and other details described are subject to change without notice.

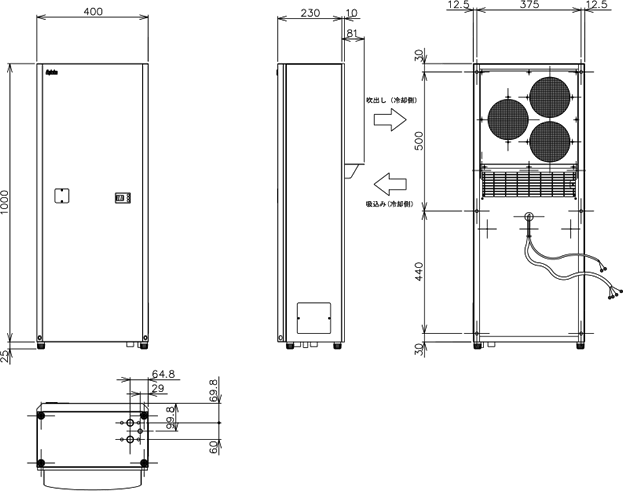

External dimensions

ENC-NW2900L External dimensions

[Precautions for cooling water piping]
Lay the piping accurately at the inlet and outlet side of the cooling water.
If the amount of cooling water decreases significantly, the protection circuit of the cooler may be activated.
