Control panel cooling unit – ENC-G2940L

Name: Control panel cooling unit – ENC-G2940L
Brand: Apiste
Rating: 4.9 (50 reviews)

Thương hiệu : Apiste

Liên hệ báo giá Hotline/ Zalo: 0911.559.559 Hotline/ Zalo: 0911.559.559

Cam kết và Chính sách của TECHNO

Cam kết 100% Hàng chính hãng
Chất lượng cao, đáp ứng đa dạng nhu cầu
Tư vấn kỹ thuật toàn diện và chuyên sâu
Chính sách bảo hành và hỗ trợ nhanh chóng

Thông số kỹ thuật

Mô tả sản phẩm

Thông tin NSX

Catalogue

Nội dung bài viết

Specifications

(50／60Hz)

Mounting type	Side-mounting
Cooling capacity(W)	2600/2900
Setting Temperature Range(℃)	25～45
Use Area Temperature(℃)	20～55
Use Area Humidity(%RH)	10～85 (No condensation)
External dimensions(mm)	H1380×W450×D280
Weight(kg)	68
Coating Color	Munsell 5Y 7/1 Equivalent color of light beige
Rated Voltage(V)	Three-phase AC380～415/AC400～460
Consumption Current: Rated(A)	2.8/2.9
Consumption Current: MAX(A)	3.3/3.7
Starting Current(A)	20/18
Consumption wattage: Rated(W)	1300/1750
Consumption wattage: MAX(W)	1800/2300
Noise Resistance	LEVEL4 by Fast Transient / Burst Immunity Test
Vibration Resistance	Equivalent to JIS Z 0200 Level1
Dust prevention / dust proof protection class	Equivalent to IP54 (internal circulation route)
Refrigerant / Fill ration(g)	R134a 340g
Noise (dB (A))	Approx. 75/79
External Output	Alarm output (No-voltage/normal open: resistive load 250V 2A)
Display	Internal temperature/Error display LED/RUN LED

Note）
Cooling capacity : Rated capacity value when external temperature is 35°C, internal temperature is 35°C – 40％. (measurement conditions: JIS-C-9612 air enthalpy method)）
Use area temperature / humidity : Use area temperature / humidity is not meant to satisfy all conditions in temperature and humidity.
Rating Value : 35°C ambient temperature, ambient humidity RH 40%.
MAX value: Value at the maximum ambient temperature allowed and an operating ambient humidity of 40%RH.
Use the product keeping the use power supply and voltage; within ±10% of rated power supply and rated voltage.
Reading an instruction manual well certainly before use and please use it right.

Accessories list

Mounting bolt for main unit	6 (M8×L25)
Drain hose	2m
Insulation lock ties	1
Mounting nut	2 (M8)
Instruction manual	1

Replacement parts list

Condenser side Fan	Circulating fan for ENC-G2940L
Evaporator side Fan	Outside air fan for ENC-G2940L
Filter	ENC-F-43 (2 pieces)
Control PCB	Substrate for ENC-G2940L

Note: Check with our sales representative as the delivery lead time varies depending on the inventory status.
*Note that the model, specifications and other details described are subject to change without notice.

External dimensions

ENC-G2940L External dimensions

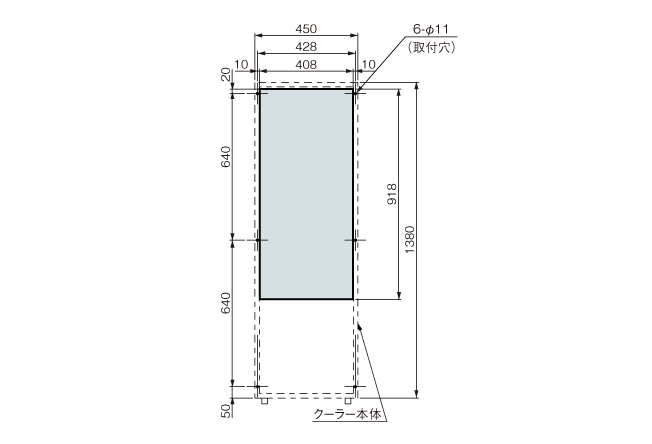

Diagram of Panel Cutout

ENC-G2940L Diagram of Panel Cutout

ENC-G2940L
[Standard panel cut]
*Figure seen from control board outside.
*Please keep screw pace on the occasion of processing.
*Standard panel cut will not be changed even if a model change is carried out (some exceptions apply), but the minimum panel cut dimensions are subject to change without notice.
