Specifications

(50／60Hz)

Mounting type	Side-mounting
Cooling capacity(W)	2500/2800
Setting Temperature Range(℃)	30～70
Use Area Temperature(℃)	30～70
Use Area Humidity(%RH)	10～85（～45℃）、10～45（～55℃）、10～30（～65℃）、10～20（～70℃）
External dimensions(mm)	H1455×W480×D260
Weight(kg)	72
Coating Color	Munsell 5Y 7/1 Equivalent color of light beige
Rated Voltage(V)	Three-phase AC200
Consumption Current: Rated(A)	5.0/5.2 (When the ambient temperature of 35 ° C)
Consumption Current: MAX(A)	6.9/7.3 (When the external temperature is 70 ° C)
Starting Current(A)	30
Consumption wattage: Rated(W)	1000/1190 (When the external temperature is 35 ° C)
Consumption wattage: MAX(W)	1800/2150 (When the external temperature is 70 ° C)
Noise Resistance	1.5 kV (based on 50 ns, 1 μs, pulse width common, normal mode, noise simulator)
Vibration Resistance	5Hz frequency 20mm total amplitude
Dust prevention / dust proof protection class	Equivalent to IP54 (internal circulation route)
Refrigerant / Fill ration(g)	R134a 933g
Noise (dB (A))	Approx. 67/72
External Output	Compressor operation, panel internal temperature error, compressor overcurrent, compressor overheating, compressor pressure abnormal (250 V 2 A) relay output
Display	Power supply (white), operation (green), alarm (red) lamp display

Note）
Cooling capacity : Rated capacity value when external temperature is 35°C, internal setting temperature is 35°C. (measurement conditions: JIS-C-9612 air enthalpy method)）
The rated capacity is 900 / 1000W when the external temperature is 70 ℃ and internal setting temperature is 70 ℃.
Use the product keeping the use power supply and voltage; within ±10% of rated power supply and rated voltage.
Reading an instruction manual well certainly before use and please use it right.

Accessories list

Mounting bolt for main unit	6 (M8×L25)
Drain hose	3m (Hi-mid oil hose)
Hose band	1
Washer	2
Spacer	6
Air direcrion louver	1
Eyebolt	2 (M10)
Mounting bolt for louver	2
Instruction manual	1

Replacement parts list

Condenser side Fan	Circulating fan for 2800HL
Evaporator side Fan	Outside air fan for 2800HL
Filter	ENC-F-16 (2 pieces)

Note: Check with our sales representative as the delivery lead time varies depending on the inventory status.
*Note that the model, specifications and other details described are subject to change without notice.

External dimensions

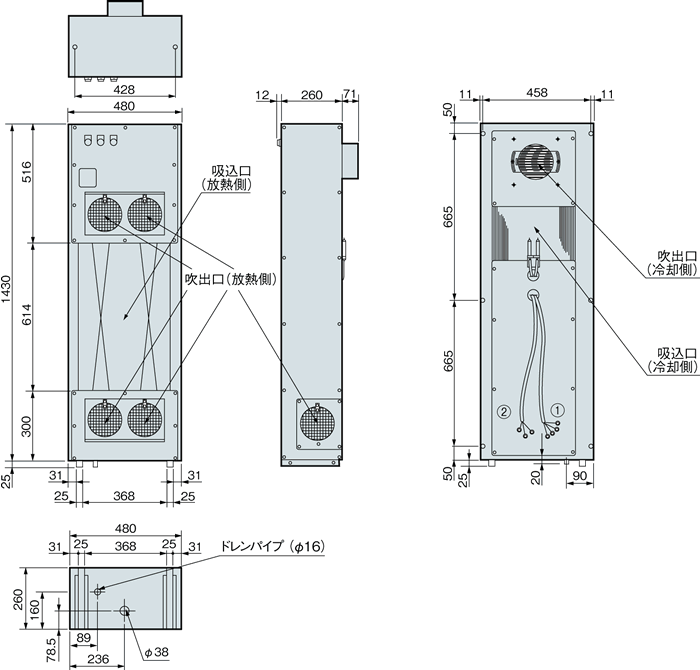

ENC-2800HL External dimensions

（1） Power line : Cord length 3m
（2） Power supply and Alarm Output Line : Cord length 3m

*The operation/warning output line in (2) is actually the compressor operation/compressor
Output line for pressure error/compressor temperature error/compressor overcurrent error/panel internal temperature error is out.
