MPA Series Single Channel Electronic Pipettes

Brand	AND
Sub Categories	Lab tools
Application	Pipettes

Category: Industrial Tools, Parts and Consumables

GENERAL

Outperforming Manual Pipettes with Comfort, Ease & Accuracy!

When using the MPA series?

When using a pipette that has not been used for a couple of hours we recommend aspirating and dispensing it prior to subsequent use. This will ensure smooth piston movement allowing for more precise dispensing.

Pipette Operation Guide ~ for accurate dispensing with pipettes

How can you dispense viscous or volatile samples more accurately? This document explains why such samples often lead to errors and effective countermeasures you can take for them. It also summarizes the MPA Series’ resistance to organic solvents, etc.

Pipette Operation Guide Rev.3 (PDF 670KB)

DESCRIPTION

Features

Accuracy/repeatability not dependent on human factors

Stress-minimized, pain-free operation using the forefinger

Easy calibration (adjustment) with the User CAL function^*1*2

Calibration and display by either volume (µL/mL) or weight (mg)^*1

Accurate pipetting possible with other manufacturers’ tips (List of compatible tips (PDF 40KB))

Dedicated glass tips and silicon adapters available

Multiple dispensing (MD) mode with automatic initial volume correction (pre-dispensing)

Mixing (MIX) mode for homogenizing solutions

Reverse operation for accurately dispensing viscous samples

Increased resistance to drop impacts with padding on the head^*1

Aspirating and dispensing speeds adjustable to 5 different levels each

Storage for up to 9 programs

High resistance to acid/organic solvents

Quickly detachable, autoclavable lower part (121 deg C, 2 atm, 20 minutes)

Adjustable tip ejector reach

Extended finger hook

Power supply by either a rechargeable battery or switching (100-240V) AC adapter

Multiple AC adapter plugs (A, BF, C, S)

Auto power OFF function

*1 Patented
*2 For verification of dispensed volumes necessary for calibration, the AD-4212B-PT/ AD-4212A-PT/ FX-300iPT pipette accuracy testers (or BM series + BM-014) are useful tools

Accessories

AX-GL-200/1200 : 10 glass tips + 2 silicon adapters (gray) for the MPA-200/1200
AX-GL-10ML : 10 glass tips + 2 silicon adapters (blue) for the MPA-10000
AX-ADP-200/1200 : 10 silicon adapters (gray) for the MPA-200/1200
AX-ADP-10ML : 10 silicon adapters (blue) for the MPA-10000

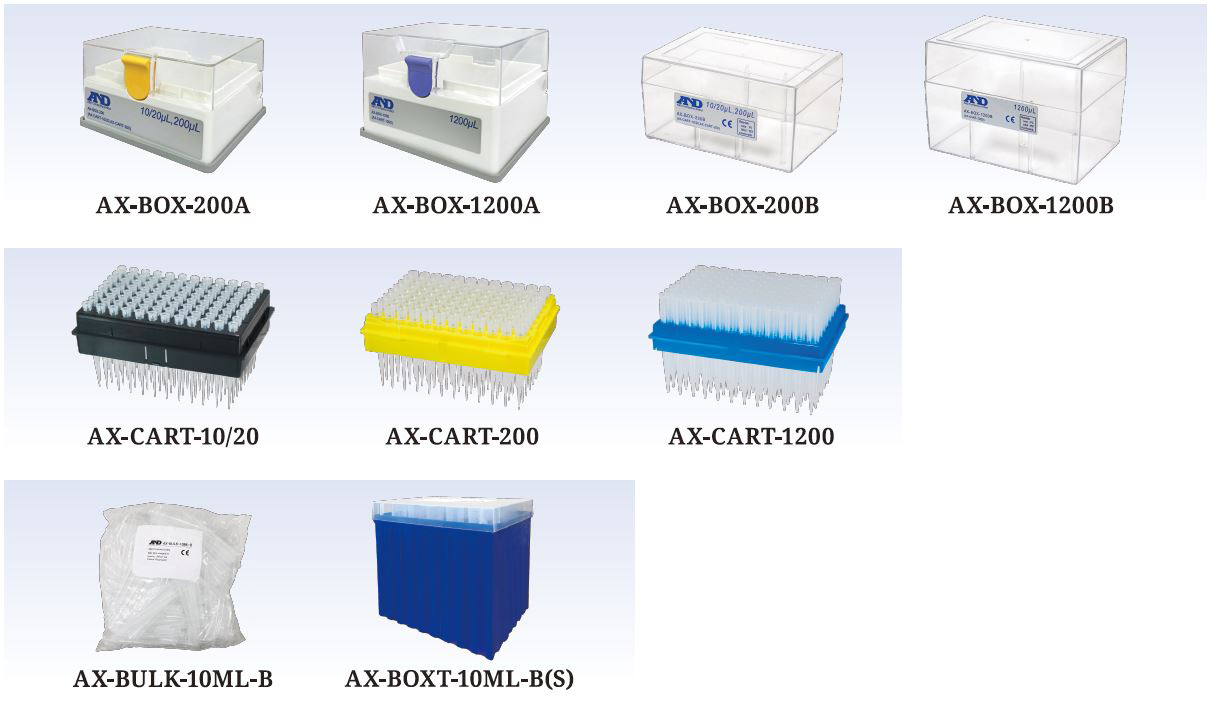

AX-BOX-200A : Tip box for the MPA-10/20/200^*3
AX-BOX-1200A : Tip box for the MPA-1200^*3
AX-BOX-200B : Tip box (no latch) for the MPA-10/20/200^*3
AX-BOX-1200B : Tip box (no latch) for the MPA-1200^*3
AX-CART-10/20 : Tip cartridge (96 sterile tips × 10 sets) for the MPA-10/20
AX-CART-200 : Tip cartridge (96 sterile tips × 10 sets) for the MPA-200
AX-CART-1200 : Tip cartridge (96 sterile tips × 10 sets) for the MPA-1200
AX-BULK-10ML-B : Bagged tips (200 tips × 1 bag) for the MPA-10000
AX-BOXT-10ML-B : Racked tips (25 tips × 1 rack) for the MPA-10000
AX-BOXT-10ML-BS : Racked sterile tips (25 sterile tips × 1 rack) for the MPA-10000

AX-LOW-10 : Lower part of the MPA-10
AX-LOW-20 : Lower part of the MPA-20
AX-LOW-200 : Lower part of the MPA-200
AX-LOW-1200 : Lower part of the MPA-1200
AX-LOW-10000 : Lower part of the MPA-10000
AX-FILTER-10ML : Filter for the MPA-10000 (100 pcs)

AX-HA-STD : Pipette hanger
AX-ST-SUS : Stainless steel stand for up to three MPAs
AX-ST-ACR : Acrylic stand for up to two MPAs

AX-HA-CHG : Charging hanger
AX-ST-CH-A1 : Charging stand for single pipette
AX-ST-CH-M4 : Charging stand for four pipettes

AX-BAT-MPA : Lithimum-ion rechargeable battery
AX-KO4730-10 : Linking cable (10 cm, for connection between charging hangers/stands)
AX-TB283 : AC adapter (A, BF, C and S plugs are included)^*4
AX-PAD-MPA : Pipette elbow cushion (NBR & polyurethane, 4 sheets × 1 set)
AX-HOLDER-SET : Sample cup holder set (Silicon rubber with anti-static treatment, large/medium/small × 1 set)

*3 Tips are not included.
*4 AX-TB282 for the US

Demonstration Videos – Introducing Various Functions of the MPA Series

Clip 1: Standard (AUTO) mode

Clip 2: Reverse operation

Clip 3: Multiple Dispensing (MD) mode

Clip 4: Mixing (MIX) mode

Clip 5: Dispensing and mixing (AUTO + MIX) mode

Clip 6: Sequential Aspirating (SA) mode

Clip 7: Sequential Dispensing (Sd) mode

Full version: All functions

SPECIFICATION

Model		MPA-10			MPA-20			MPA-200
Capacity range		0.3 to 10.0 µL			0.3 to 20.0 µL			3.0 to 200 µL
Increment		0.1 µL						1 µL
Performance^56	Volume	1.0 µL	5.0 µL	10.0 µL	2.0 µL	10.0 µL	20.0 µL	10 µL	100 µL	200 µL
	Accuracy (±)	4.0%	2.0%	1.0%	4.0%	2.0%	1.0%	2.5%	1.2%	0.6%
	Repeatability (CV)	2.5%	0.8%	0.4%	2.5%	0.8%	0.4%	1.0%	0.3%	0.15%
Maximum number of multiple dispensings		0.3 µL × 33 times			0.3 µL × 66 times			3 µL × 66 times
Program memory		9 programs
Aspirating/dispensing speed		5 speeds
Length		Approx. 280 mm
Weight (including the battery)		Approx. 150 g						Approx. 160 g

Model		MPA-1200			MPA-10000
Capacity range		15 to 1200 µL			0.1 to 10.0 mL
Increment		1 µL			0.01 mL
Performance^*5	Volume	100 µL	600 µL	1200 µL	1.0 mL	5.0 mL	10.0 mL
	Accuracy (±)	2.5%	1.0%	0.5%	2.5%	1.0%	0.5%
	Repeatability (CV)	0.6%	0.3%	0.15%	0.6%	0.15%	0.15%
Maximum number of multiple dispensings		15 µL × 80 times			0.1 mL × 99 times
Program memory		9 programs
Aspirating/dispensing speed		5 speeds
Length		Approx. 280 mm
Weight (including the battery)		Approx. 170 g			Approx. 190 g
