Outperforming Manual Pipettes with Comfort, Ease & Accuracy!

When using the MPA series?

When using a pipette that has not been used for a couple of hours we recommend aspirating and dispensing it prior to subsequent use. This will ensure smooth piston movement allowing for more precise dispensing.

Pipette Operation Guide ~ for accurate dispensing with pipettes

How can you dispense viscous or volatile samples more accurately? This document explains why such samples often lead to errors and effective countermeasures you can take for them. It also summarizes the MPA Series’ resistance to organic solvents, etc.

Pipette Operation Guide Rev.3 (PDF 670KB)

DESCRIPTION

Features
Accuracy/repeatability not dependent on human factors Stress-minimized, pain-free operation using the forefinger *Individually detachable cylinders, enabling to change the number of channels (max. eight channels)^1** Easy calibration (adjustment) with the User CAL function^23 Calibration and display by either volume (μL/mL) or weight (mg)^2 Accurate pipetting possible with other manufacturers’ tips Dedicated glass tips and silicon adapters available Multiple dispensing (MD) mode with automatic initial volume correction (pre-dispensing) Mixing (MIX) mode for homogenizing solutions Reverse operation for accurately dispensing viscous samples Increased resistance to drop impacts with padding on the head^2 Aspirating and dispensing speeds adjustable to 5 different levels each Storage for up to 9 programs High resistance to acid/organic solvents Adjustable tip ejector reach Extended finger hook Power supply by either a rechargeable battery or switching (100-240V) AC adapter Multiple AC adapter plugs (A, BF, C, S) Auto power OFF function 1 Patent pending 2 Patented *3 For verification of dispensed volumes necessary for calibration, the AD-4212B-PT/ AD-4212A-PT/ FX-300iPT pipette accuracy testers (or BM series + BM-014) are useful tools
Videos




Accessories

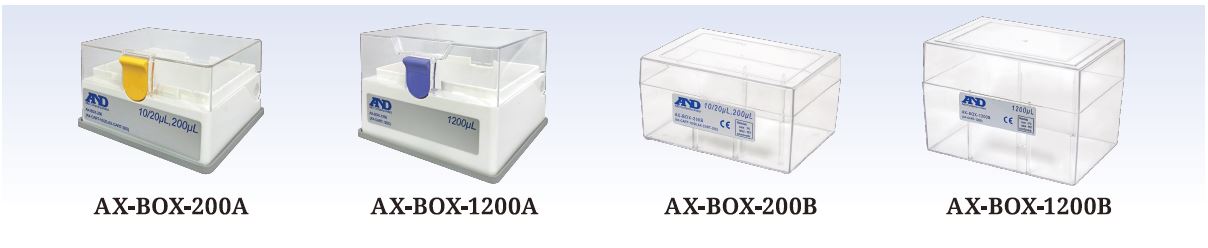

AX-BOX-200A : Tip box for the MPB-200-8^4 AX-BOX-1200A : Tip box for the MPB-1200-8^4 AX-BOX-200B : Tip box (no latch) for the MPB-200-8^4 AX-BOX-1200B : Tip box (no latch) for the MPB-1200-8^4 AX-CART-200 : Tip cartridge (96 sterile tips × 10 sets) for the MPB-200-8 AX-CART-1200-8 : Tip cartridge (96 sterile tips × 10 sets) for the MPB-1200-8


AX-LOW-200-8 : Lower part of the MPB-200-8 AX-CYL-200 : Cylinder unit for the MPB-200-8 (8 pcs) AX-LOW-1200-8 : Lower part of the MPB-1200-8 AX-CYL-1200 : Cylinder unit for the MPB-1200-8 (8 pcs)

AX-HA-STD : Pipette hanger

AX-HA-CHG : Charging hanger AX-ST-CH-A1 : Charging stand for single pipette AX-ST-CH-M4 : Charging stand for four pipettes

AX-BAT-MPA : Lithimum-ion rechargeable battery AX-KO4730-10 : Linking cable (10 cm, for connection between charging hangers/stands) AX-TB283 : AC adapter (A, BF, C and S plugs are included)^*5 AX-PAD-MPA : Pipette elbow cushion (NBR &smp; polyurethane, 4 sheets × 1 set)

4 Tips are not included. 5 AX-TB282 for the US

SPECIFICATION

Model		MPB-200-8			MPB-1200-8
Capacity range		3.0 to 200 mL			15 to 1200 µL
Increment		1 µL
Performance^*6	Volume	10 µL	100 µL	200 µL	100 µL	600 µL	1200 µL
	Accuracy (±)	5.0%	2.4%	1.2%	5.0%	2.0%	1.0%
	Repeatability (CV)	2.0%	0.6%	0.3%	1.2%	0.6%	0.3%
Maximum number of multiple dispensings		5 µL × 40 times			15 µL × 80 times
Program memory		9 programs
Aspirating/dispensing speed		5 speeds
Length		Approx. 290 mm
Weight (including the battery)		Approx. 290 g			Approx. 280 g
