Control panel cooling unit – ENC-GR500L-SUS

Name: Control panel cooling unit – ENC-GR500L-SUS
Brand: Apiste
Rating: 4.9 (50 reviews)

Thương hiệu : Apiste

Liên hệ báo giá Hotline/ Zalo: 0911.559.559 Hotline/ Zalo: 0911.559.559

Cam kết và Chính sách của TECHNO

Cam kết 100% Hàng chính hãng
Chất lượng cao, đáp ứng đa dạng nhu cầu
Tư vấn kỹ thuật toàn diện và chuyên sâu
Chính sách bảo hành và hỗ trợ nhanh chóng

Thông số kỹ thuật

Mô tả sản phẩm

Thông tin NSX

Catalogue

Nội dung bài viết

Specifications

(50／60Hz)

Mounting type	Side-mounting
Cooling capacity(W)	470
Setting Temperature Range(℃)	25～45
Use Area Temperature(℃)	-5～55
Use Area Humidity(%RH)	10～85 (No condensation)

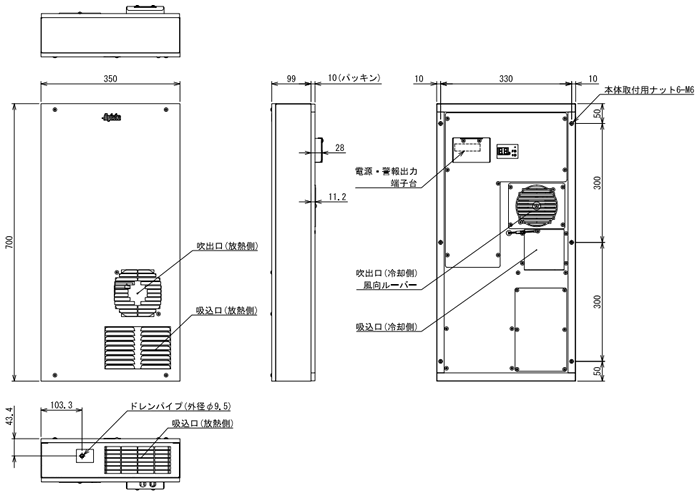

External dimensions(mm)	H700×W350×D99
Weight(kg)	17
Surface finish	SUS-HL Finish
Rated Voltage(V)	Single-phase AC200～240
Consumption Current: Rated(A)	1.9/1.7
Consumption Current: MAX(A)	2.7/2.4
Consumption wattage: Rated(W)	275
Consumption wattage: MAX(W)	395
Vibration Resistance	Equivalent to JIS Z 0200 Level1
Dust prevention / dust proof protection class	IPX4 (ENC-SUS unit only), Equivalent to IP54 (internal circulation route)
Refrigerant / Fill ration(g)	R1234yf 160g
Noise (dB (A))	Approx. 76
External Output	Alarm output (No-voltage/normal open: resistive load 250V 2A), Can be switched to no-voltage/normal close by setting
Display	Internal temperature/Error/RUN

*Cooling Capacity : Rated capacity value when ambient temperat ure is 35°C and ambient humidity is 40%RH , power source & voltage : 200V. (Measuring specification :JIS B 8615-1 the inside of a air enthalpy test method)
*Use area temperature / humidity : Use area temperature / humi dity is not meant to satisfy all conditions in temperature and humidity.
*Rating Value : 35°C ambient temperature, ambient humidity RH 40%, power source & voltage : 200V.
*Maximum Value : The ambient temperature at MAX value has spec ification separately.
*Use the product keeping the use power supply and voltage; wit hin ±10% of rated power supply and rated voltage.
*Consumption current and wattage are values during cooling ope ration.
*Dust prevention / dust proof protection class : Excluding dra in pipe section
*Reading an instruction manual well certainly before use and p lease use it right.
