ALE-NC (US and Canada only)

Brand	ViBRA
Sub Categories	Mass, Force & Hardness Test and Measurements
Application	Precision Balance

Category: Test and Measurements

Common Specification

Tare	Not available by regulation
Span adjustment	Manual operation Span Adjustment with external calibration weight
Over error	“o-Err” showed when Full weight range + 9 more digits over
Temperature and humidity range	10～ 30℃、Up to 85％ rh(without the dew condensation)
Power source	AC adapter: Input 100-240VAC,50-60Hz / Output 5.95VDC Dry-cell battery: AA batteries 4 pcs
Output	RS232C / USB Type B

Features

Certification : NTEP (17-061A2) and Canada (AM-6153)
Compact housing
Short stabilization time
User friendly operation
ALE provides three advantages as key values. ALE series is new answer to optimized weighing operation in the laboratory.

Tuning-fork sensor inside, Only one in the world

As tuning-fork sensor balance, ALE series provides incomparable advantages to laboratory weighing. Sustainable high quality performance. High durability in the long run. Since these are inherent in the principle and the design of tuning-fork sensor, the customers can enjoy the advantages even in highly precise laboratory weighing operation.

Legal for trade use model

ALE-NC model has e=d specification approved by NTEP and Measurement Canada, which enables direct sales use both in the U.S. and Canada. This is the most renewed point from our original ALE model. (NTEP : 17-061A2, Canada : AM-6153)

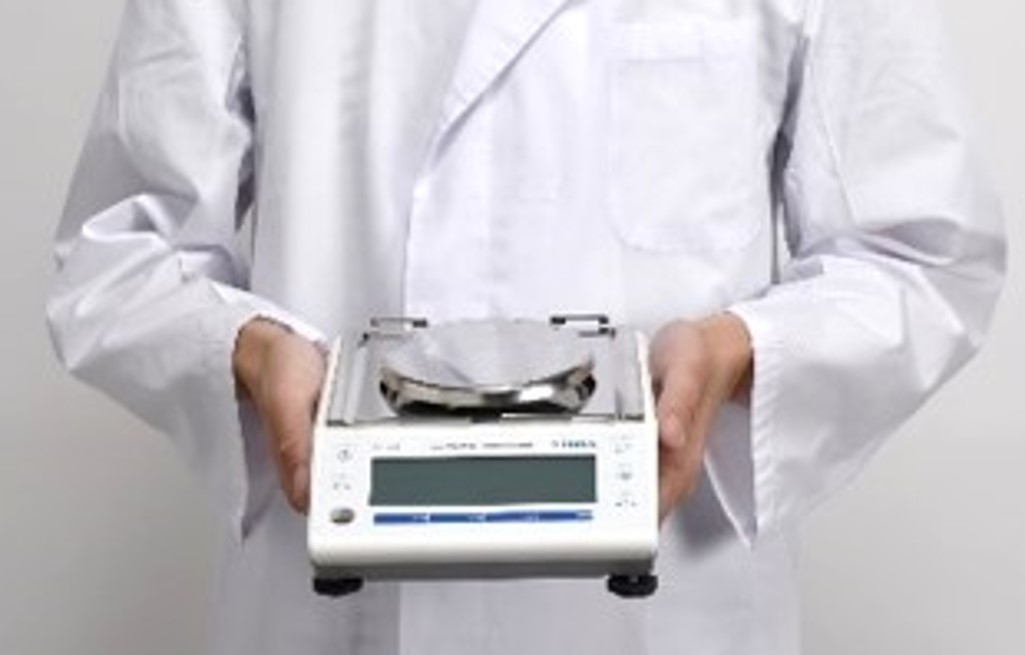

Compact housing

The smallest footprint among precision balances. You can install the balance wherever you want, even in very small laboratory.

Short stabilization time

ALE has newly developed filtering technology which can reduces the stabilization time to the half of the previous models. Short stabilization time is key factor to efficient weighing operation.

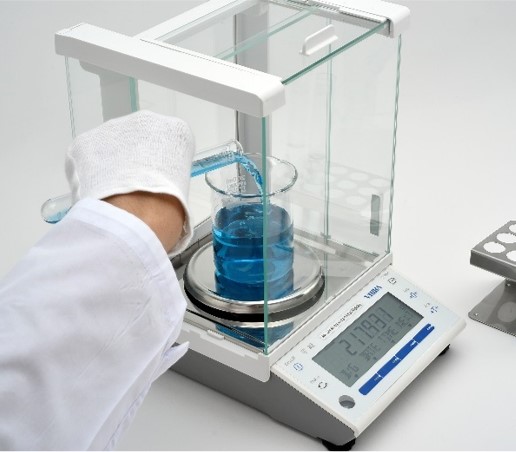

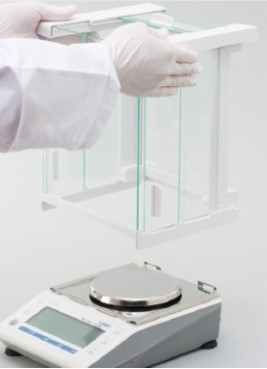

Windshield in innovative design

nnovative windshield strikes a good balance between space-saving design and easy access to weighing chamber. Windshield can be easily removed manually. Convenient for the users to clean the balance after daily operation.

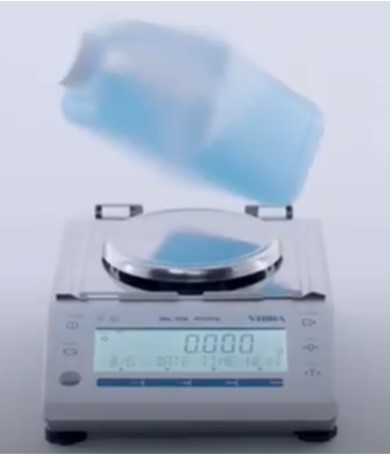

Extremely durable against strong impact

ALE series is designed to be very durable against strong impact. Even when heavy objects would accidentally fall down on the balance during operation, ALE can absorb the physical shock. You can resume the weighing operation immediately.

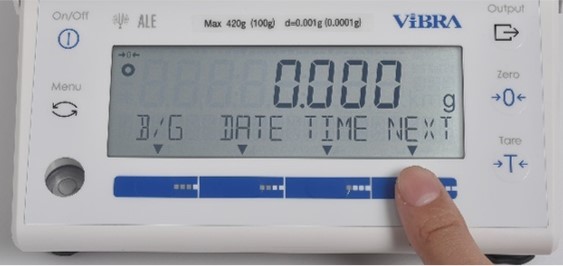

Minimize operation time with free keys

Three keys on the front can work as free keys. You can assign short-cut of often used functions on these keys. You don’t need to push keys many times. It can minimize the operation time.

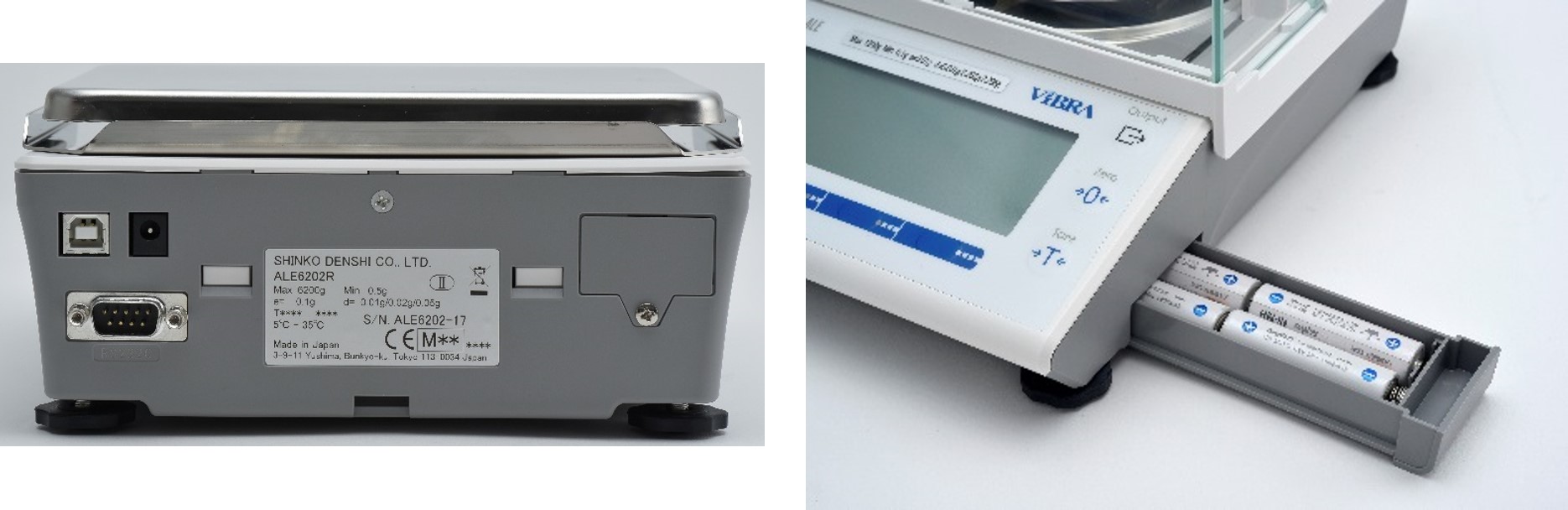

Multiple operation and connection

ALE can be operated with dry-cell batteries thanks to low power consumption in tuning-fork sensor. Battery is useful also as reserve electric power. ALE also has multiple connection with RS232C, USB Type B as default.

Specification

Model name	ALE-322NC	ALE-1501NC	ALE-8200NC
Capacity	320g	1500g	8200g
Readability (d)	0.01g	0.1g	1g
Verification intervals (e)	0.01g	0.1g	1g
Accuracy class	Ⅱ	Ⅱ	Ⅱ
Repeatability	0.01g	0.1g	1g
Stabilization time	1.6sec.	1.6sec.	1.6sec.
Pan size	118mm	160x180mm	160x180mm
Dimensions (WDH)	205x270x301mm (incl. windshield)	192x265x86mm	192x265x86mm
Windshield	Included	Not included	Not included

Functions

Back-light LCD display
Counting
Percent
Carat
Specific gravity
Stand-by
Switching function of Min. readbilitry
Comparator (Limit)
Accumulative adding
Bar-Graph indication
Manual oparation calibration delete
RS232C output
ISO/GLP/GMP compliant print
Clock/Calender
RTS software download
Under weight
Battery driveDry-cell battery drive

Option

Model No.	Option Name
ALE-DU	Under weighing hook
ALE-DK	Density measurement kit

Peripheral equipment

Model No.	Peripheral Name
CBM-910Ⅱ	Standard Printer
CSP-160Ⅱ	Statistics Printer
RTS	Data-collecting Software

Download

Operation Manual of ALE-NC (English)

Operation Manual of ALE-NC (French)
