GME-S Series high-performance mist collectors deliver air in a horizontal direction to a positive pressure drain mechanism equipped with a drain discharge port. The system ejects trapped mist out of the drain discharge port more efficiently than negative Pressure drain mist collectors.
Specifications
| Max. Airflow | 17 |
|---|---|
| Max. external static pressure(kPa) | 1.4 |
| Collecting efficiency(%) *1 | 99.7 |
| Operating environment temperature and humidity | 0～50℃, RH90% or less (Indoor specifi cation, No condensation) |
| Absorption gas temperature(℃) | 0～50 |
| Target to be collected | Water-immiscible oil mist (Ignition point: Higher than 150 °C)
water-immiscible oil mist |
| Max. inlet density(mg/m3) | 50 |
| External dimensions(mm) *2 | H507×W434×D674 |
| Suction opening | Side suction Φ148mm |
| Weight(kg) | 48 |
| Coating color | Munsell N7 / Munsell 5PB/2 |
| Rated voltage(V) *3 | Three-phase AC200 / 200, 220, 230 |
| Max. Consumption current(A) | 4.8 |
| Max. Power consumption(W) | 1500 |
| Installed motor | Permanent magnet synchronous motor (for inverter drive only) |
| Installed motor output | 1.5kW (totally-enclosed fan-cooled type) |
| Fan material | A5052 (Aluminum), SPCC (Iron) |
| Disk material | SUS304 (Stainless) |
| Drain pipe(mm) | Outside diameter Φ 25.4 pipe (2 places) |
| Noise(dB[A]) | Approx. 78 |

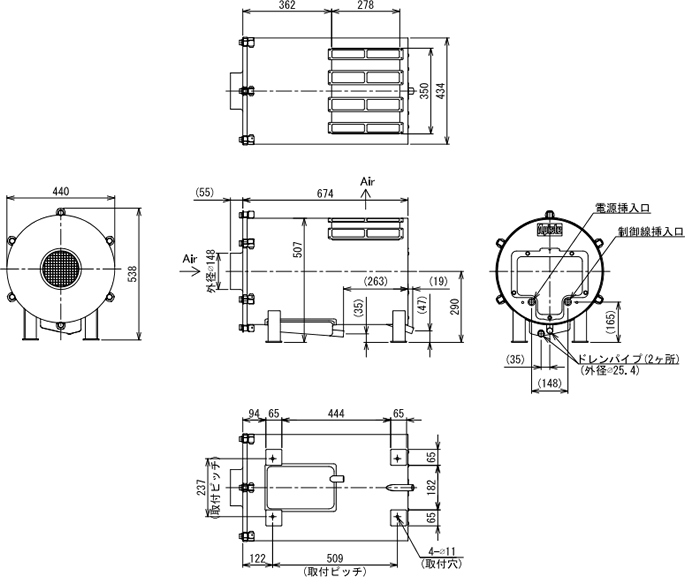

External dimensions
