Common Specification

Tare	Zero to Full weighing range
Span adjustment	Manual operation Span Adjustment with external calibration weight
Ingress Protection Rating	IP65 (with optional water proof connector cable) (UF-620, UF-3200 only)
Power source	DC +24V± 10%, 0.1A
Interface	Half duplex RS485, Full duplex RS232C 1200 to 38.4kbps

Features

Realized a high-accuracy weighing with min. resolution (0.001g). (UF-300, UF-620)
Display resolution 1mg at 5% capacity.: approx. 0.4 sec, Weighing renewal
rate at max.100 times/sec, Fast response. (UF-300, UF-620)
Dust-proof and water-proof: All enclosure is made with stainless steel.
IP65 standards compliant, implement water-proof connector (Optional)(UF-620, UF-3200)
Able to output data directly to PLC or PC.

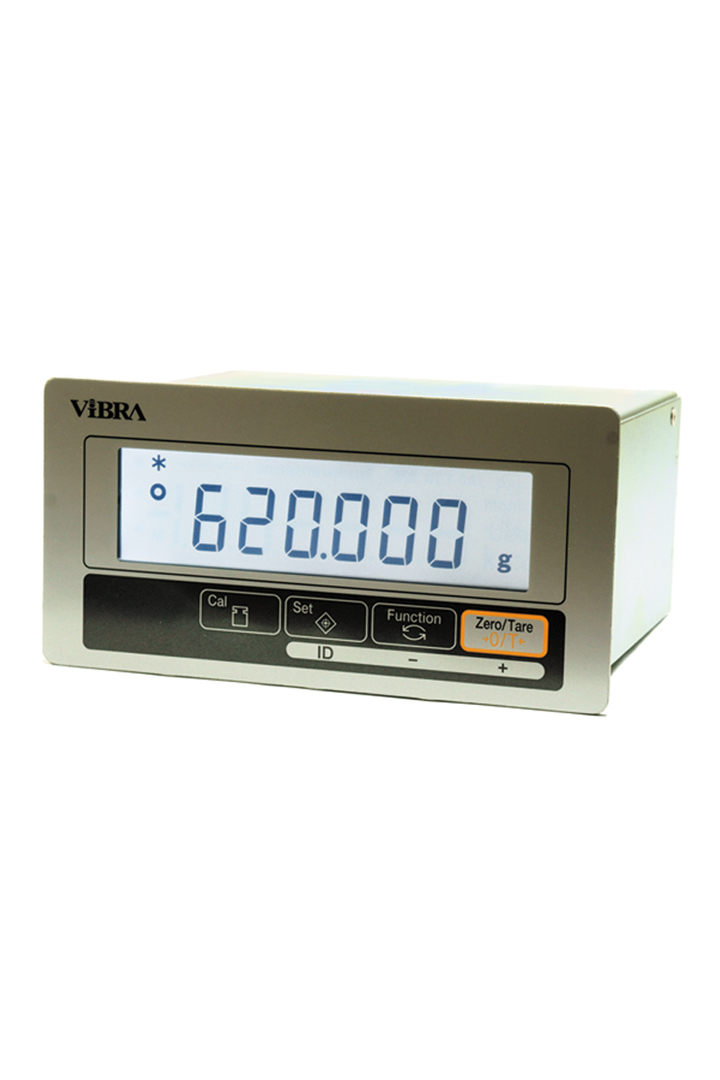

Display unit UD-1(option)

※option

Specification

Functions

Option

Model No.	Option Name
UD-1	Display unit
UF BCD	BCD Option
UF WPAN	Weighing pan
UF AD	AC adaptor
UF CB	Connector cable (10m)
UF WPCB	Water proof connector cable (10m)

Download

Brand	ViBRA
Sub Categories	Mass, Force & Hardness Test and Measurements
Application	Built-in weighing unit

UF series
