Common Specification

Measurement format	Evaporation weight loss method
Measurement mode	Automatic operation mode, Timed operation mode
Display	LCD with backlit (96× 40 mm)
Storage of measurement conditions	5
Heat source	Organic cargon heater (280W× 2)
Power supply	AC100～ 120V/220～ 240V
Power consumption	Max. 900W
Sample pan	Stainless steel (110mm dia., 11mm depth)
Output	RS232C
Items included	Sample pan× 2, sample pan handler, windshield, sample pan tray, spoon, spare fuse, sample alminum sheet× 10, power cord, 3P-2P plug, operation manual

Features

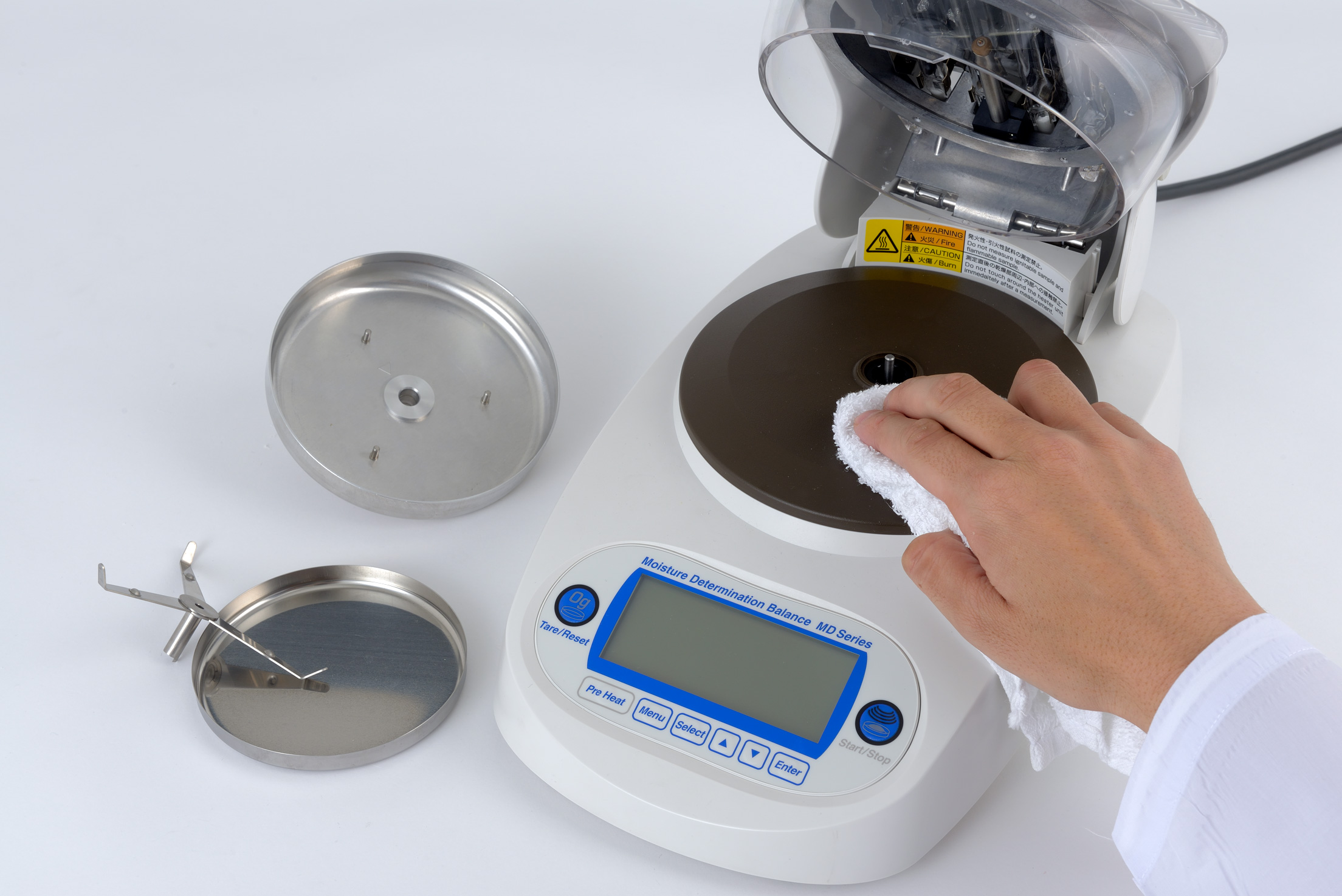

Simple structure – easy to clean
Newly adopted, organic-carbon heater
Fast drying, high repeatability
Connection to outside devices
Alert signal
Clear, bright and large LCD display

Adaptability

MD series can be available for moisture analysis of various objects and various locations. Unique organic carbon heature has strong power and is environmentally correct heat source.

Simplicity

MD series has automatic measurement mode in which MD monitors the drying process and automatically completes the operation. And the structure is quite simple that daily cleaning and maintenance are easy.

Reliability

No other factor is more important than reliability in measurement performance. Combination of auto-taring system and newly developed organic carbon heater realize excellent repeatability in measurement results.

Newly adopted, organic carbon heater

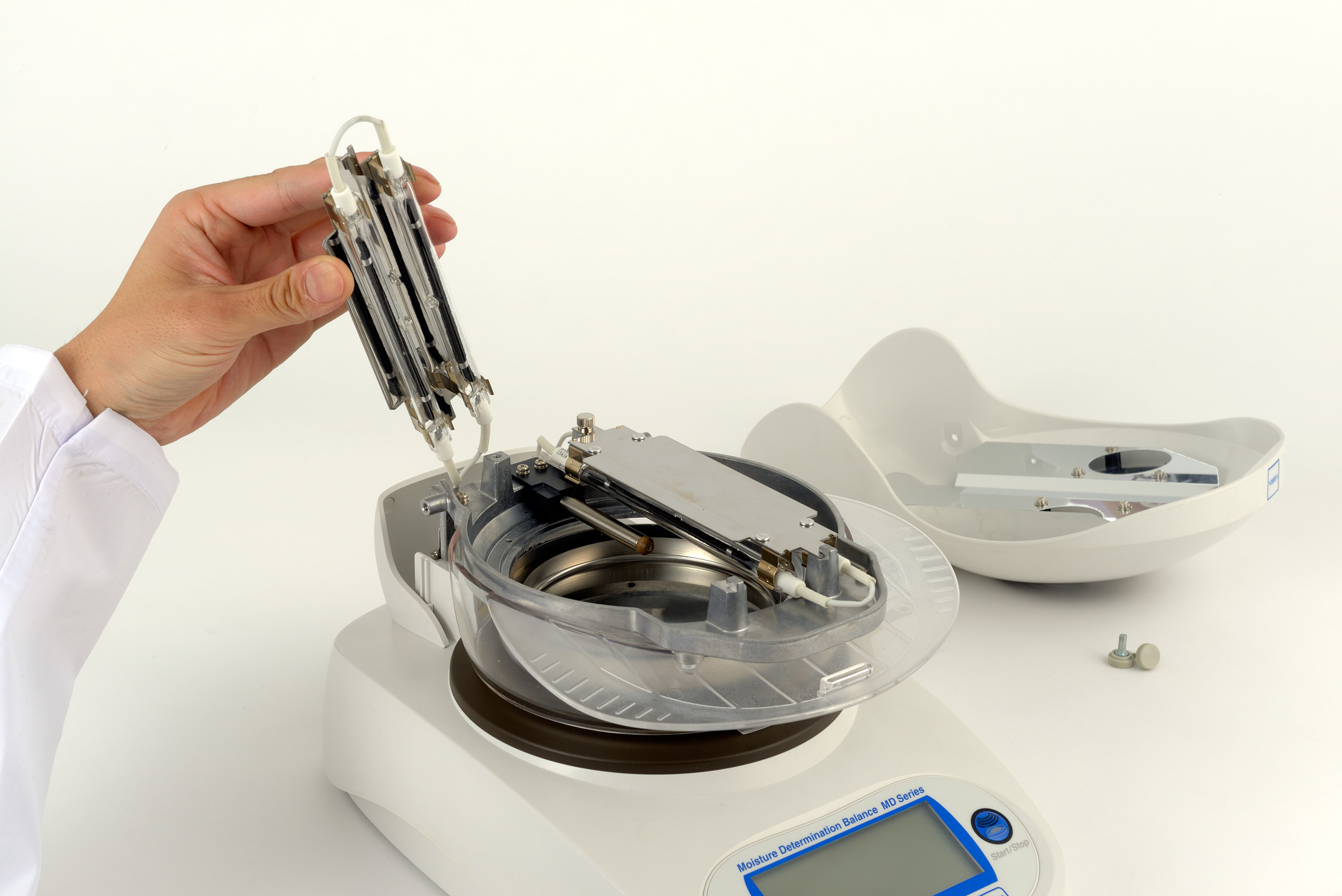

Strong heat power and long life time are consistent in organic-carbon heater. Even when you need to replace heater as maintenance work you can do it manually without any tools.

Specification

Model name	MD83
maxmum sample weight	80g
minimum sample weight	1g
Readability of balance	0.005g
Readability moisture content	0.01% / 0.1%
Readability with 5g sample	0.1%
Measurement range	0 ~ 100%(wet base, solids), 0 ~ 500%(dry base)
Temperature range	30 ~ 180℃
Increment in temperature	１℃

Functions

Back-light LCD display
RS232C output

Option

Model No.	Option Name
DA-1	Disposable alminium sheet (500pcs)
FW-100	Deodorizing windshield

Peripheral equipment

Model No.	Peripheral Name
VZ-380	Printer
TQ-100	Sample crusher
FDL-02	Data logger software

Brand	ViBRA
Sub Categories	Mass, Force & Hardness Test and Measurements
Application	Moisture Analyser

MD series
