Common Specification

Tare	Zero to Full weighing range
Span adjustment	HJK･････With external calibration weight HJK-R･････Automatic with internal calibration weight
Ingress Protection Rating	IP65
Over error	“o-Err” showed when Full weight range + 9 more digits over
Temperature and humidity range	5 ～ 35℃、Up to 80％ rh(without the dew condensation)
Power source	Dedicated AC adapter (100-240 VAC, 12 VDC)
Output	RS232C (Dsub 9P)

Features

For more efficient precision weighing in manufacturing process
IP65 water&dust proof
High precision & durable

High degree of usability – For more efficient weighing operation

User-friendly key configurations, reasonable menu-tree and short stabilization time make possible the efficient and comfortable weighing operation.

High durability in precision weighing enabled by Tuning-fork sensor

Innovative and heavy-duty tuning-fork sensor provides everlasting excellent performance in precision weighing in various manufacturing processes.

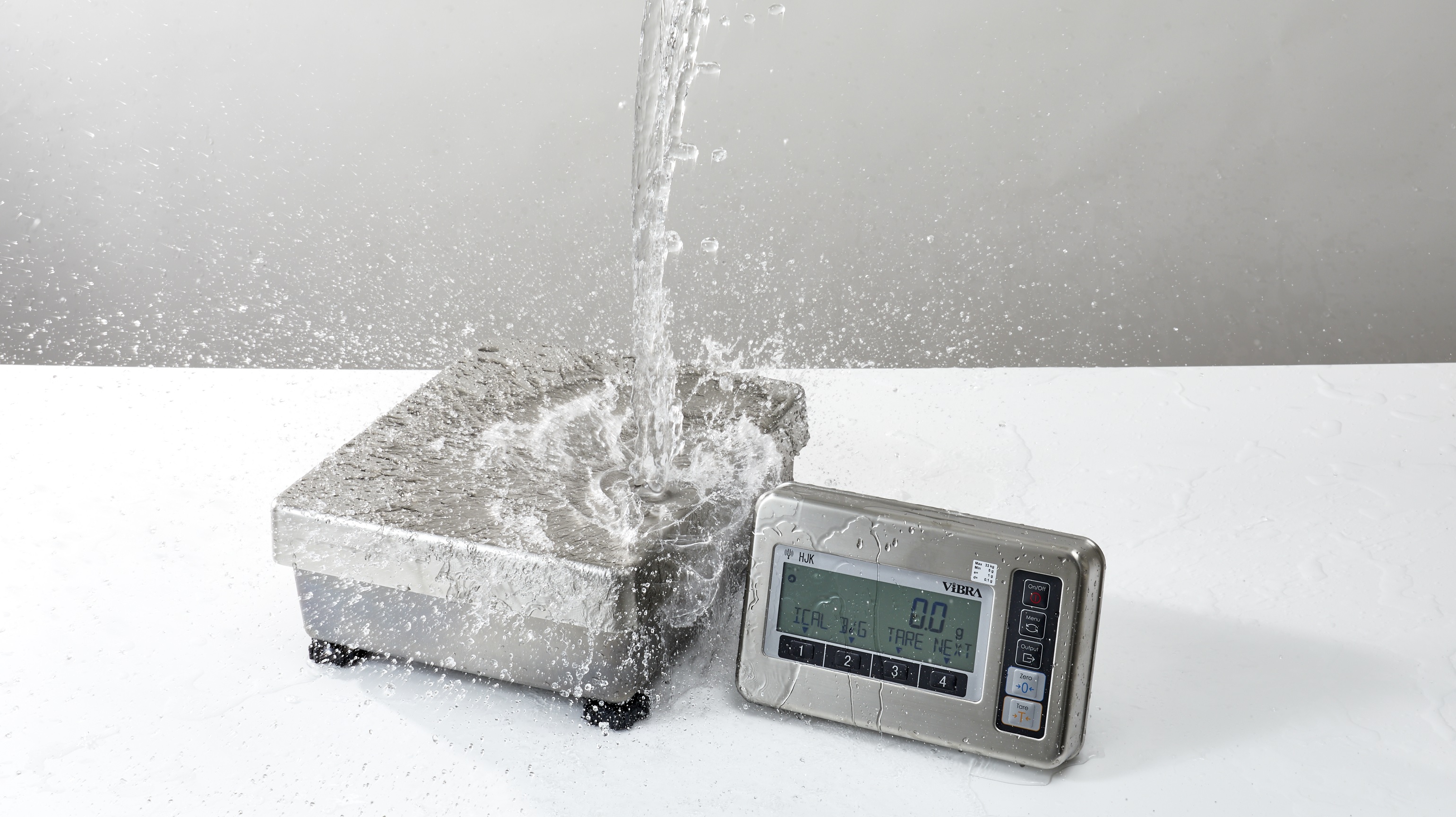

Water-proof structure, easy to clean

Because both of platform and indicator are made from stainless steel they are highly resistant to physical shocks and chemical materials. Easy to clean by water after operation.

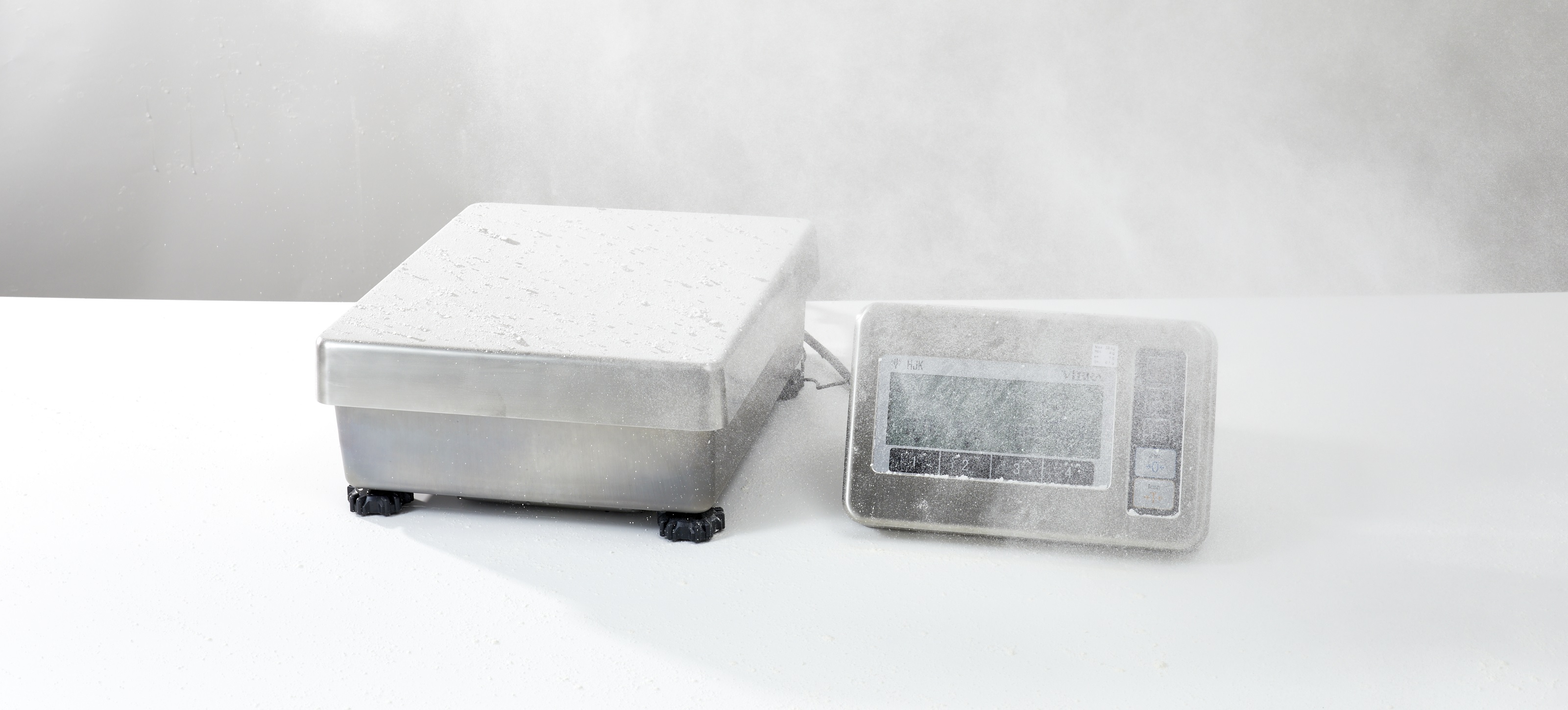

Dust-proof structure, highly resistant to severely dusty environment

IP65 dust-proof structure ensures reliable weighing results even in severely dusty environment.

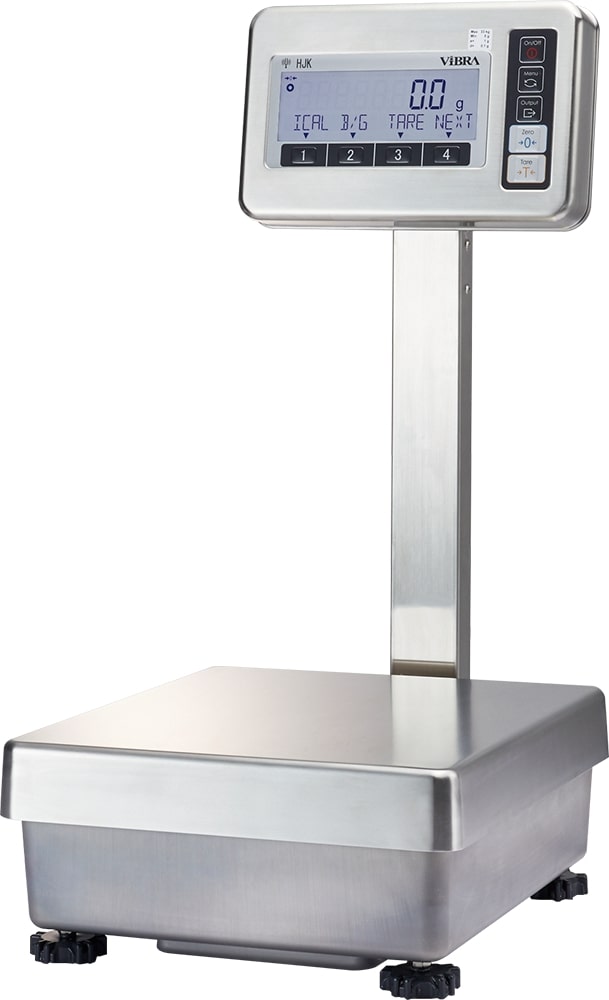

Pole style with optional kit

Optional pole kit is available.

Specification

External weight types

Model name	HJ17K0.1S	HJ22K0.1S	HJ33K0.1S	HJ62K0.1DS
Capacity	17kg	22kg	33kg	6200g	62kg
Readability (d)	0.1g	0.1g	0.1g	0.1g	1g
Verification intervals (e)	1g	1g	1g	1g
Non-linearity	±0.3g	±0.3g	±0.3g	±0.3g	±3g
Repeatability (σ)	0.1g	0.1g	0.1g	0.1g	1g
Pan size	400 x 350 mm
Dimension (LDH)	350 x 482 x 175mm (350 x 482 x 700mm when pole option installed)
Calibration	With external weight

Internal weight types

Model name	HJ17K0.1SR	HJ22K0.1SR	HJ33K0.1SR	HJ62K0.1DSR
Capacity	17kg	22kg	33kg	6200g	62kg
Readability (d)	0.1g	0.1g	0.1g	0.1g	1g
Verification intervals (e)	1g	1g	1g	1g
Non-linearity	±0.3g	±0.3g	±0.3g	±0.3g	±3g
Repeatability (σ)	0.1g	0.1g	0.1g	0.1g	1g
Pan size	400 x 350 mm
Dimension (LDH)	350 x 482 x 175mm (350 x 482 x 700mm when pole option installed)
Calibration	With internal and external weight

Functions

LCD display
Counting
Percent
Carat
Momme
Coefficient
Specific gravity
Stand-by
Switching function of Min. readbilitry
Doublr range
Comparator (Limit)
Bar-Graph indication
Manual oparation calibration delete
Built-in automatic calibration weight
RS232C output
ISO/GLP/GMP compliant print
Clock/Calender
RTS software download
Under weight
Battery drive
IP65 standard compliant dust-proof & water-proof structure

Option

Model No.	Option Name
HKBT	Rechargeable battery
HJKLM	Relay contact
HJKPK	Pole kit
HJKR4	RS422A output
HJKUH	Under weighing hook
HJKPC	Extended pick-up cable (5m or 10m)

Peripheral equipment

Model No.	Peripheral Name
CBM-910Ⅱ	Standard Printer
RTS	Data-collecting Software

Download

Catalog

HJK Series Operation Manual

Dimension (drawing)

Dimension with pole option (drawing)

EU Declaration of conformity

Brand	ViBRA
Sub Categories	Mass, Force & Hardness Test and Measurements
Application	Platform scale

HJK series
