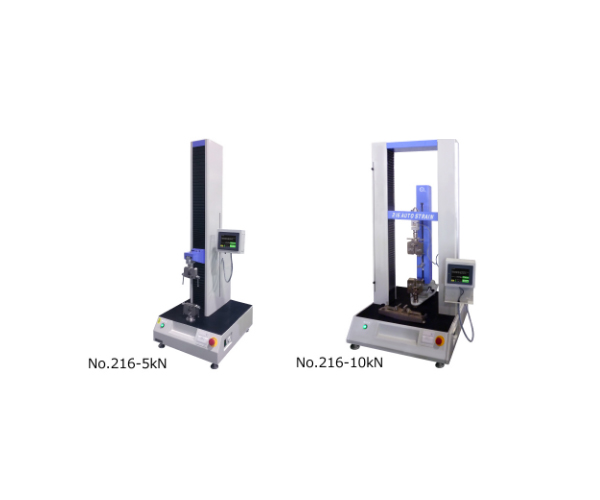

This universal tensile elongation/ compression tester (Auto Strain/ Strograph) is best suited for plastic and rubber. The tester capacity comes in either a maximum of 5 kN or 10 kN respectively. The test specimen is attached to chucks on both ends and is applied elongation/ compression force continuously through loadcell until breakage. Tester control and tensile strength calculation are both conducted via touch panel interface.
Specification
| Model | No.216-5kN | No.216-10kN |
|---|---|---|
| UNIVERSAL MATERIAL TESTER | UNIVERSAL MATERIAL TESTER | |
| Test Load | Max. 5 kN | Max. 10 kN |
| Stroke | 1,000 mm * | |
| Test Speed | 1 to 1,000 mm/min | 1 to 500 mm/min |
| Accessory | Chuck shapes are to be consulted. | |
| Options | CSV Export Software, Extensometer (Stroke: 50 to 500 mm, Accuracy: ± 0.5 mm) | |
| Power Source | AC 100 V, 1-Phase, 10 A, 50/60 Hz | AC 100 V, 1-Phase, 10 A, 50/60 Hz |
| Dimensions/ Weight (Approx.) | W550 × D700 × H1,630 mm, 130 kg | W730 × D750 × H1,560 mm, 180 kg |
