Phase Indicators KEW 8031
Click to enlarge
ViBRA

ALE series

Brand

ViBRA
Sub Categories

Mass, Force & Hardness Test and Measurements
Application

Precision Balance
Category:
Common Specification

Common Specification

Tare Zero to Full weighing range
Span adjustment ALE･････Manual operation Span Adjustment with externalcalibration weight
ALE-R･････Semi-automatic Span Adjustment with built-incalibration weight
Over error “o-Err” showed when Full weight range + 9 more digits over
Temperature and humidity range 10～ 30℃、Up to 85％ rh(without the dew condensation)
Power source AC adapter: Input 100-240VAC,50-60Hz / Output 5.95VDC
Dry-cell battery: AA batteries 4 pcs
Output RS232C + USB
Features

Features

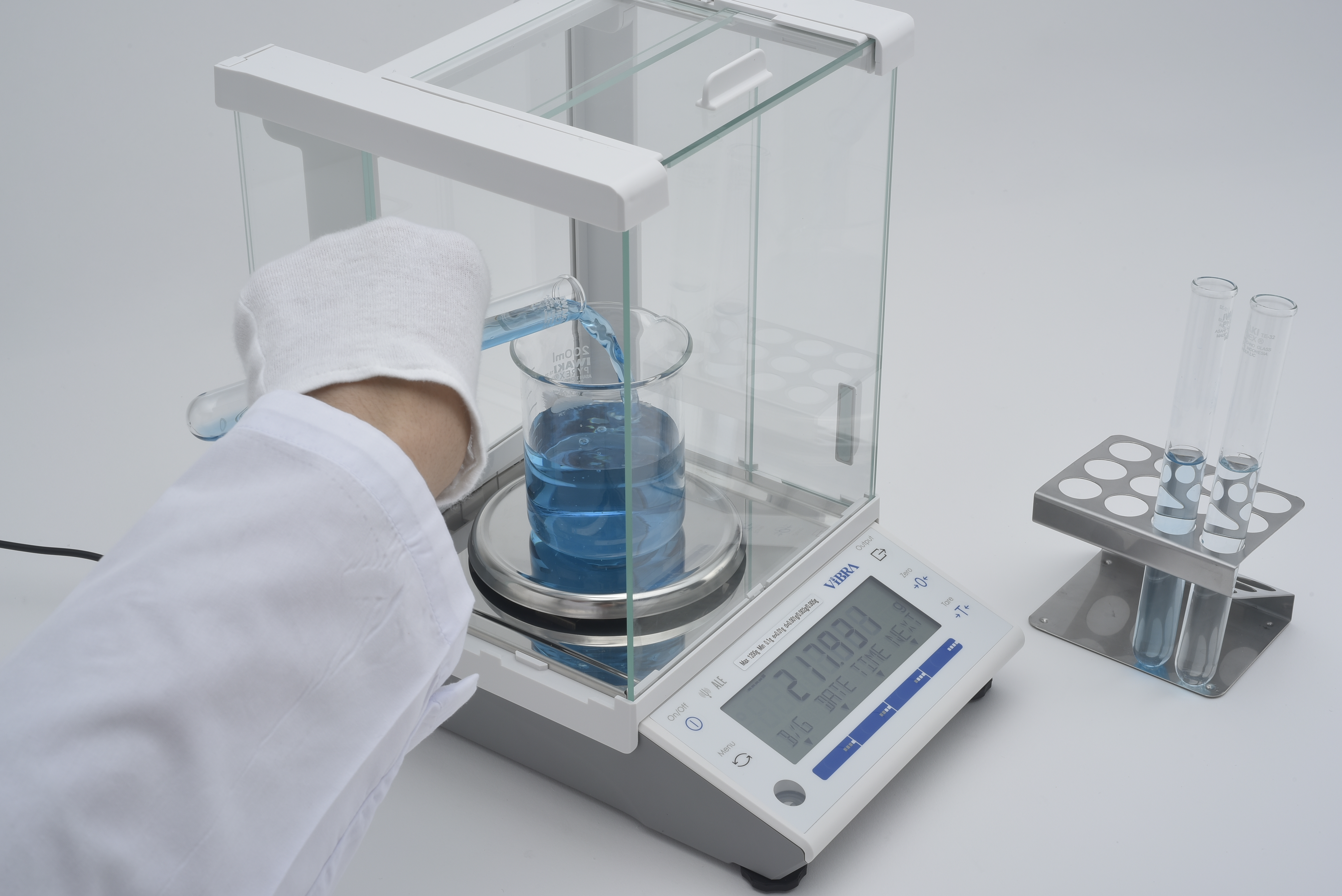

  • Compact housing
  • Short stabilization time
  • User friendly operation
  • ALE provides three advantages as key values. ALE series is new answer to optimized weighing operation in the laboratory.

Tuning-fork sensor inside, Only one in the world

As tuning-fork sensor balance, ALE series provides incomparable advantages to laboratory weighing. Sustainable high quality performance. High durability in the long run. Since these are inherent in the principle and the design of tuning-fork sensor, the customers can enjoy the advantages even in highly precise laboratory weighing operation.

[イメージ]

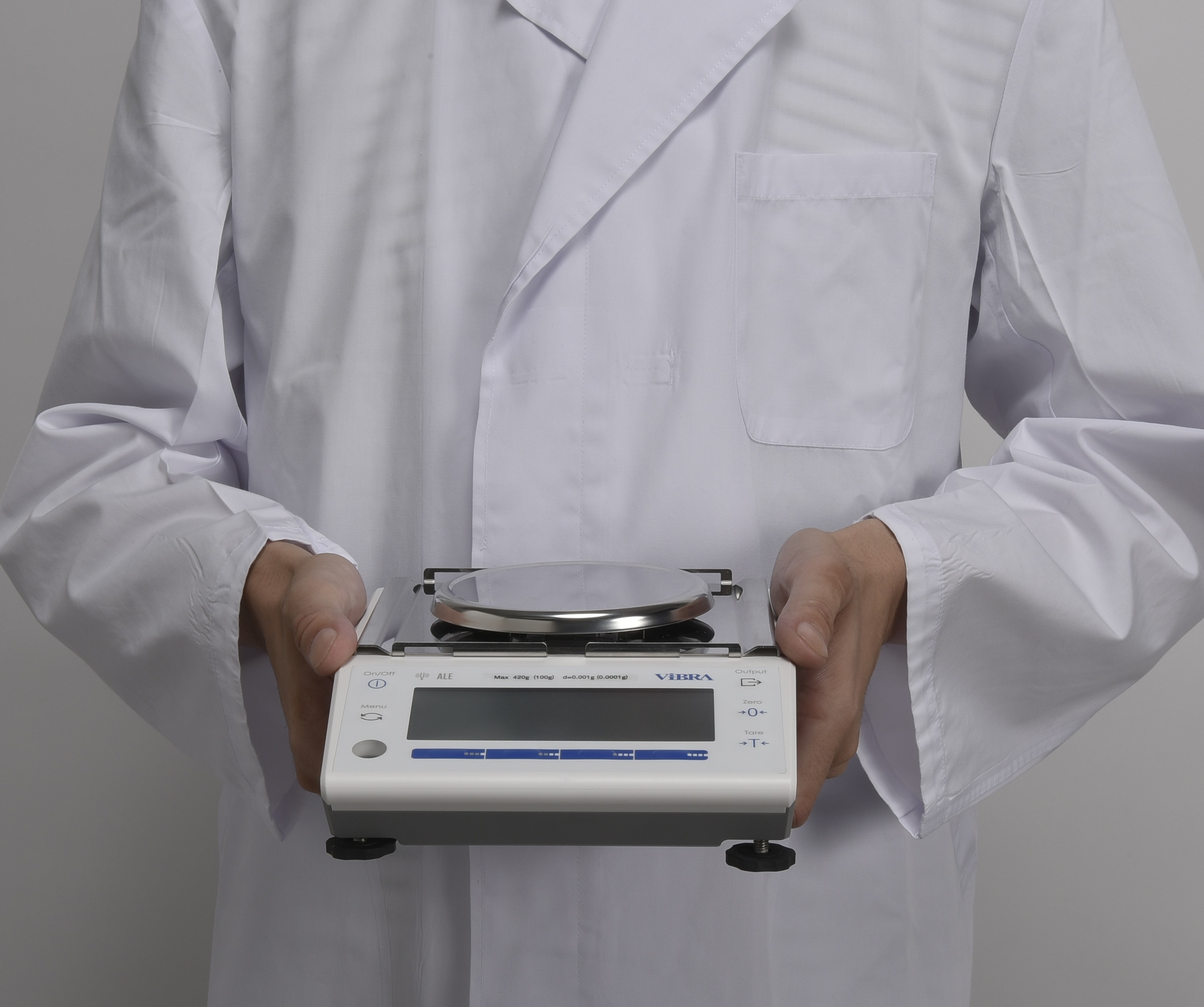

Compact housing

The smallest footprint among precision balances. You can install the balance wherever you want, even in very small laboratory.

[イメージ]

Short stabilization time

ALE has newly developed filtering technology which can reduces the stabilization time to the half of the previous models. Short stabilization time is key factor to efficient weighing operation.

[イメージ]

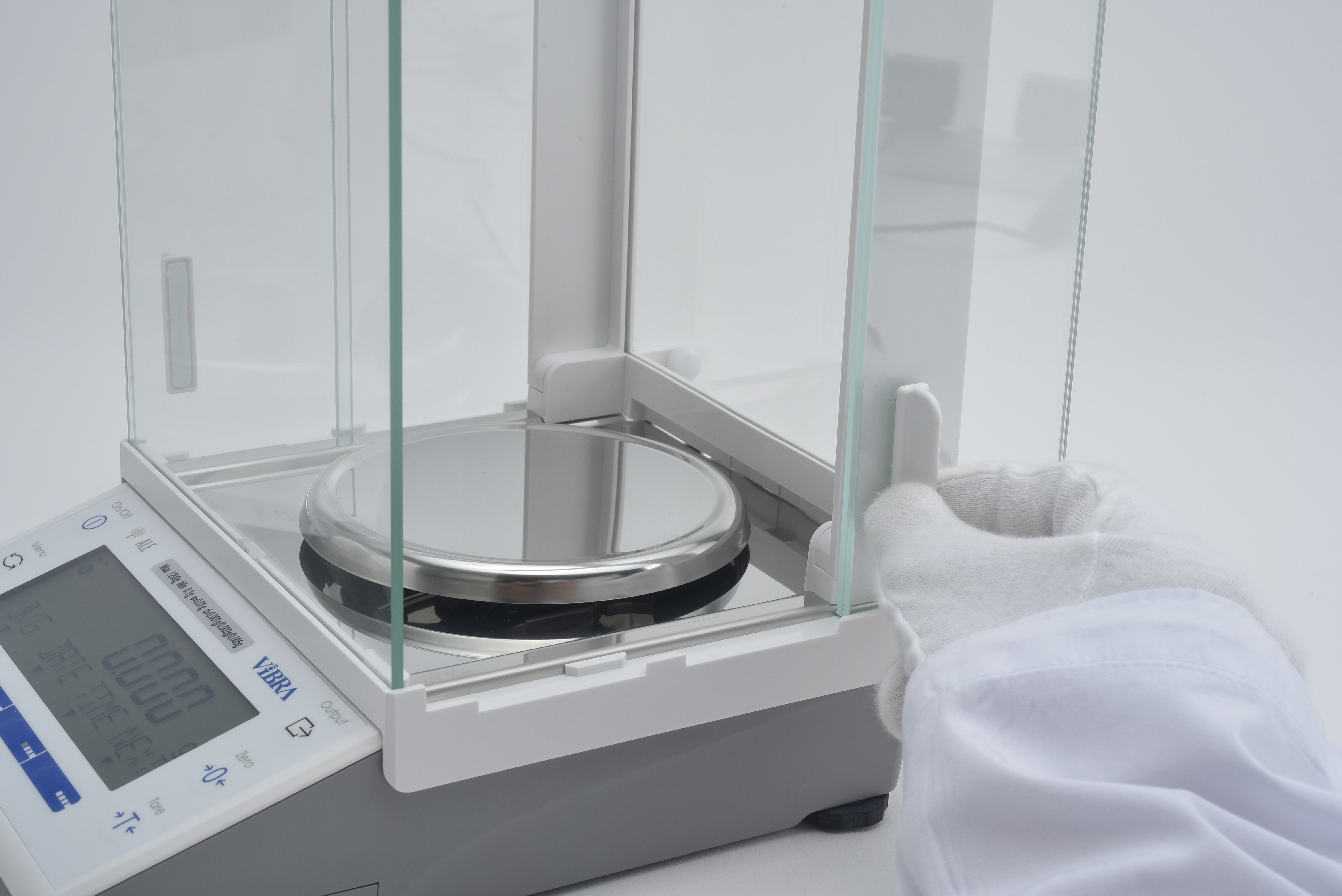

Windshield in innovative design

Innovative windshield strikes a good balance between space-saving design and easy access to weighing chamber.

[イメージ]

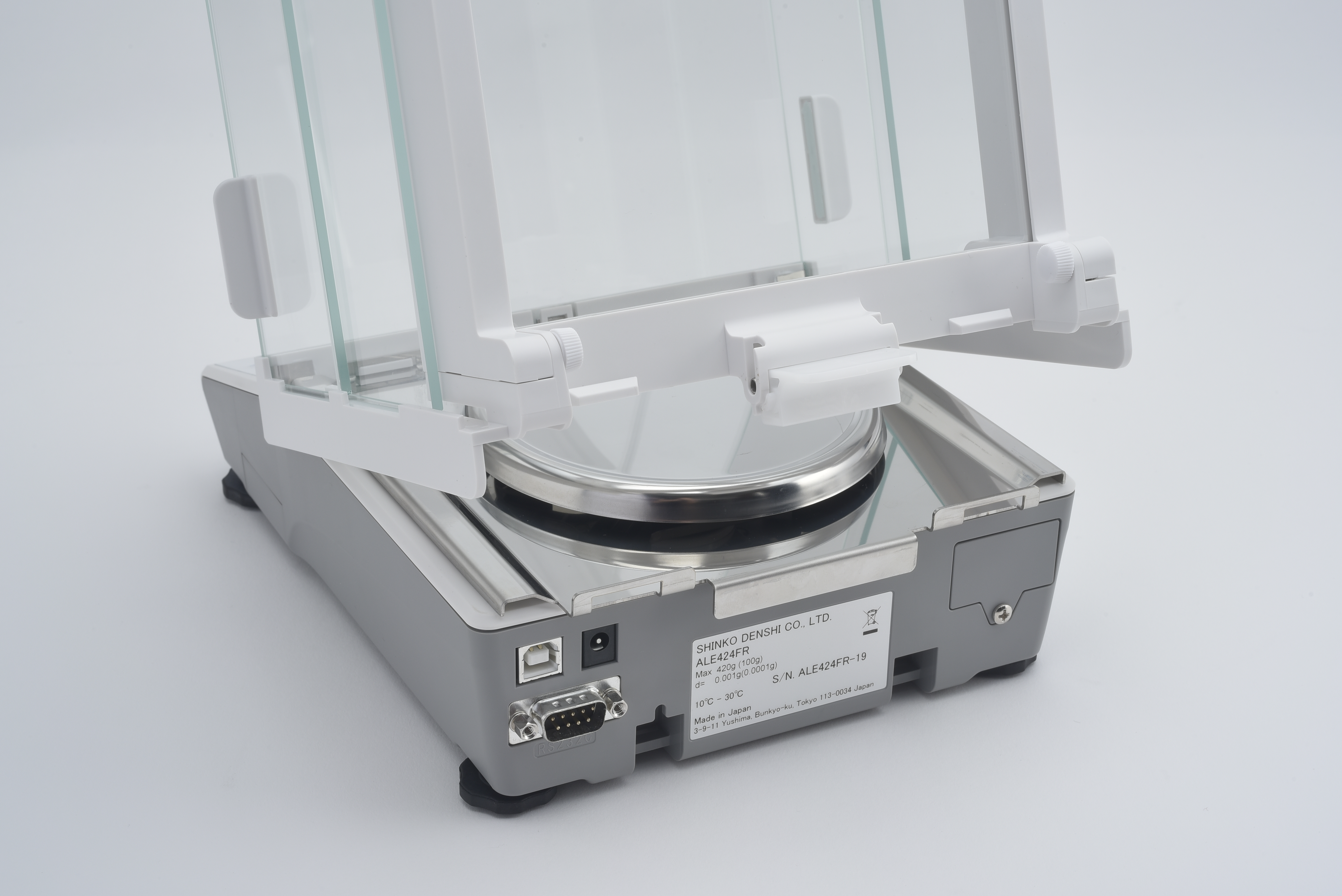

Easy to clean

Windshield can be easily removed manually. Convenient for the users to clean the balance after daily operation.

[イメージ]

Extremely durable against strong impact

ALE series is designed to be very durable against strong impact. Even when heavy objects would accidentally fall down on the balance during operation, ALE can absorb the physical shock. You can resume the weighing operation immediately.

[イメージ]

Minimize operation time with free keys

Three keys on the front can work as free keys. You can assign short-cut of often used functions on these keys. You don’t need to push keys many times. It can minimize the operation time.

[イメージ]

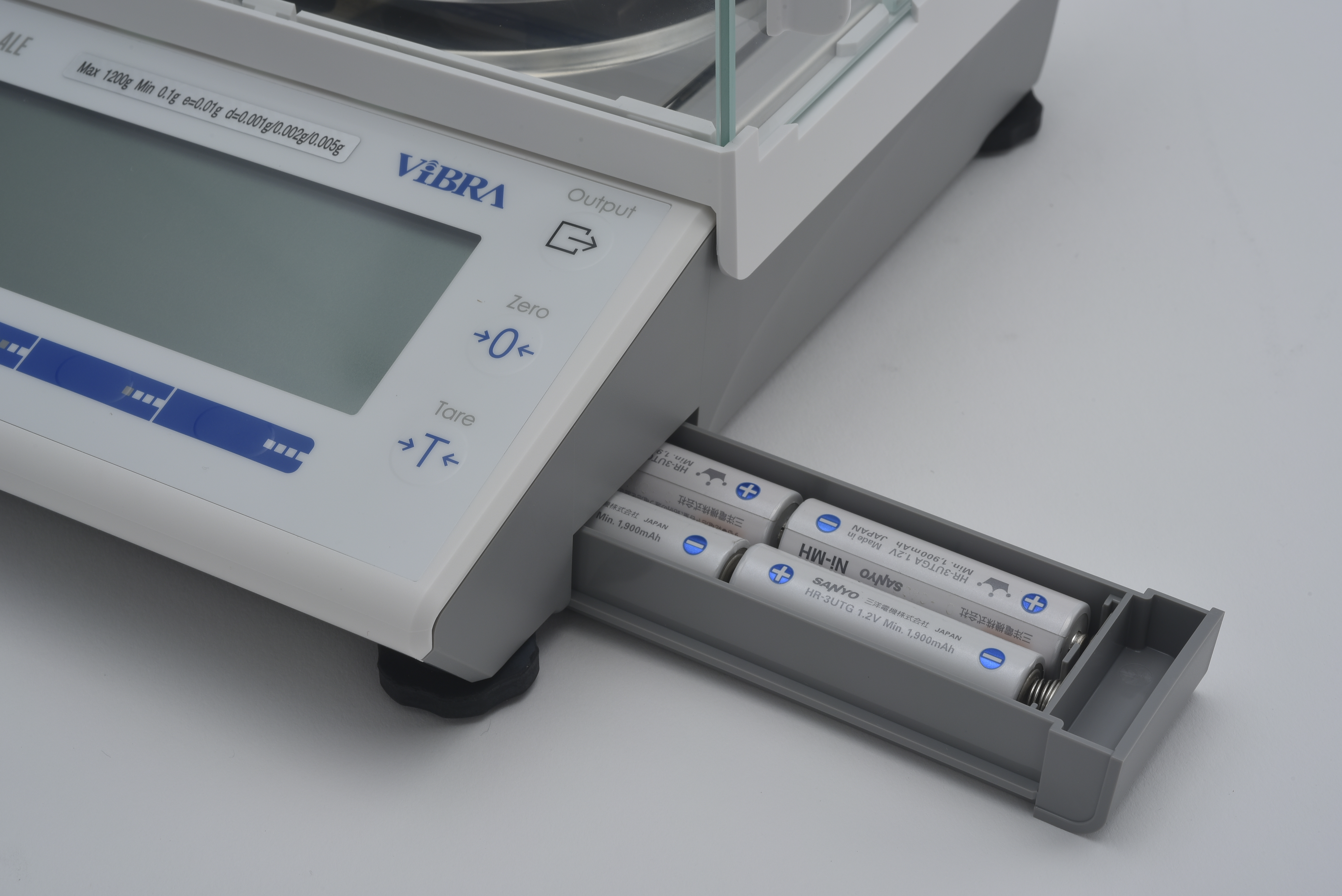

Battery drive

ALE can be operated with dry-cell batteries thanks to low power consumption in tuning-fork sensor. Battery is useful also as reserve electric power.

[イメージ]

ALE density kit option

Density kit option is available only with 220g-620g models.

Specification

Specification

Internal weight models

Model name ALE223R ALE323R ALE623R
Capacity 220g 320g 620g
Readability (d) 0.001g 0.001g 0.001g
Verification intervals (e) 0.01g 0.01g 0.01g
Accuracy class Ⅱ Ⅱ Ⅱ
Repeatability 0.001g 0.001g 0.001g
Stabilization time 1.6sec. 1.6sec. 1.6sec.
Pan size 118mm dia.
Dimensions (WDH) 205x270x301mm (incl. windshield)
Windshield Incl. as standard

– – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – –

Model name ALE1502R ALE2202R ALE3202R ALE6202R
Capacity 1500g 2200g 3200g 6200g
Readability (d) 0.01g 0.01g 0.01g 0.01g
Verification intervals (e) 0.1g 0.1g 0.1g 0.1g
Accuracy class Ⅱ Ⅱ Ⅱ Ⅱ
Repeatability 0.01g 0.01g 0.01g 0.01g
Stabilization time 1.6sec. 1.6sec. 1.6sec. 1.6sec.
Pan size 180×160 mm
Dimensions (WDH) 192x265x86 mm
Windshield N/A

– – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – –

Model name ALE6201R ALE8201R ALE15001R
Capacity 6200g 8200g 15000g
Readability (d) 0.1g 0.1g 0.1g
Verification intervals (e) 0.1g 1g 1g
Accuracy class Ⅱ Ⅱ Ⅱ
Repeatability 0.01g 0.1g 0.1g
Stabilization time 1.6sec. 1.6sec. 1.6sec.
Pan size 180×160 mm
Dimensions (WDH) 192x265x86 mm
Windshield N/A



External weight models

Model name ALE223 ALE323 ALE623
Capacity 220g 320g 620g
Readability (d) 0.001g 0.001g 0.001g
Verification intervals (e) 0.01g 0.01g 0.01g
Accuracy class Ⅱ Ⅱ Ⅱ
Repeatability 0.001g 0.001g 0.001g
Stabilization time 1.6sec. 1.6sec. 1.6sec.
Pan size 118mm dia.
Dimensions (WDH) 205x270x301mm (incl. windshield)
Windshield Incl. as standard

– – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – –

Model name ALE1502 ALE2202 ALE3202 ALE6202
Capacity 1500g 2200g 3200g 6200g
Readability (d) 0.01g 0.01g 0.01g 0.01g
Verification intervals (e) 0.1g 0.1g 0.1g 0.1g
Accuracy class Ⅱ Ⅱ Ⅱ Ⅱ
Repeatability 0.01g 0.01g 0.01g 0.01g
Stabilization time 1.6sec. 1.6sec. 1.6sec. 1.6sec.
Pan size 180×160 mm
Dimensions (WDH) 192x265x86 mm
Windshield N/A

– – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – –

Model name ALE8201 ALE15001
Capacity 8200g 15000g
Readability (d) 0.1g 0.1g
Verification intervals (e) 1g 1g
Accuracy class Ⅱ Ⅱ
Repeatability 0.1g 0.1g
Stabilization time 1.6sec. 1.6sec.
Pan size 180×160 mm
Dimensions (WDH) 192x265x86 mm
Windshield N/A
Functions

Functions

  • Back-light LCD display
  • Counting
  • Percent
  • Carat
  • Momme
  • Coefficient
  • Specific gravity
  • Aniumal weighing
  • Statictic calculation
  • Stand-by
  • Switching function of Min. readbilitry
  • Comparator (Limit)
  • Accumulative adding
  • Bar-Graph indication
  • Manual oparation calibration delete
  • Built-in automatic calibration weight
  • RS232C output
  • ISO/GLP/GMP compliant print
  • Clock/Calender
  • RTS software download
  • Under weight
  • Battery driveDry-cell battery drive
Option

Option

Model No. Option Name
ALE-LM Relay contact
ALE-RS Extension RS2321C
ALE-ETHER Ethernet
ALE-DU Under weighing hook
ALE-DK Density measurement kit
Peripheral equipment

Peripheral equipment

Model No. Peripheral Name
LAS-05D-SD “No wind” Ionizing blower
CBM-910Ⅱ Standard Printer
CSP-160Ⅱ Statistics Printer
RTS Data-collecting Software
